LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
Specifications
Brand Name :
YT
Model Number :
LDA
Certification :
CE ISO
Place of Origin :
Xinxiang,Henan Province,China
MOQ :
1 set
Price :
USD 2000-8000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000sets per year
Delivery Time :
30-60 work days
Packaging Details :
The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Shipped in a standard sea container or shipped in bulk.
product name :
LDA Single Girder Bridge Crane
keywords :
electric bridge crane
Crane type :
LDA
Lifting weight :
1-22.5t
Lifting height :
6-20m
Lifting speed :
8/0.8 m/min
Working class :
A3
Electric current :
380V 50Hz
Span :
7.5~21.5m
Working speed :
20~30m/min
Width of trail :
37~70mm
Color :
Customer Request
Description

LDA Type Single Girder 5 Ton Bridge Crane Electric Overhead Crane 30m / Min

LDA Single Girder Bridge Crane Description

The single-girder bridge crane is a lifting device installed horizontally above the factory building, warehouse, and stockyard for material hoisting. It is shaped like a bridge since its ends rest on tall concrete columns or metal supports. The bridge frame of the single girder bridge crane runs longitudinally along the rails laid on the elevated sides on both sides, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and most numerous hoisting machinery.

The single girder bridge crane is a light crane with a lifting capacity of 1 to 20 tons. The span is 7.5 to 31.5 meters. The job level is A3. Operating temperature is -25°C to 40°C. It is used together with CD type or MD type electric hoist. This kind of bridge crane (overhead crane) is widely used in factories, warehouses, material inventory and other places to lift goods. Do not use in flammable, explosive and other corrosive environments.

LDA Single Girder Bridge Crane Technical Data Sheet

Condition

New

Max. Lifting Load

20T

Max. Lifting Height

30M

Span

7.5~22.5m

Place of Origin

China ,Henan

Brand Name

YT

Certification

ISO CE

Warranty

1.5 years

Weight (KG)

1650kg

Crane type

LDA

Lifting weight

1-20T

Lifting height

6~20m

Lifting speed

8/0.8 m/m in

Working class

A3

Electric current

380V 50Hz three-phase

Span

7.5~22.5m

Working speed

20~30m/min

Width of trail

37~70mm

General characteristics of single girder overhead cranes

1. Steel material of the crane: Q235B, Q345B/Q345D

2. The box structure is solid and stable, and it can be operated by an independent handle. It can also be equipped with a wireless remote control. It has powerful functions and a reasonable appearance.

3. Wheels: all wheels are vacuum forged, (or according to customer requirements), quenched by intermediate frequency, and produced by our factory.

4. Wheels, steel wire ropes, gears, and couplings are produced and cast by CNC machine tools.

5. Motor: Nanjing Special or Nanjing General Motors, the quality of which is leading in China.

6. Main electrical appliance brands: Schneider or Siemens.

7. Control mode: pendant wire button control, remote control, cab control.

Safety protection of LDA Single Girder Bridge Crane

1. Weight overload protection device

2. High-quality, long-term use, impact-resistant polyurethane buffer

3. Crane limit switch

4. Loss of pressure protection

5. Emergency stop system

6. Lifting limiter

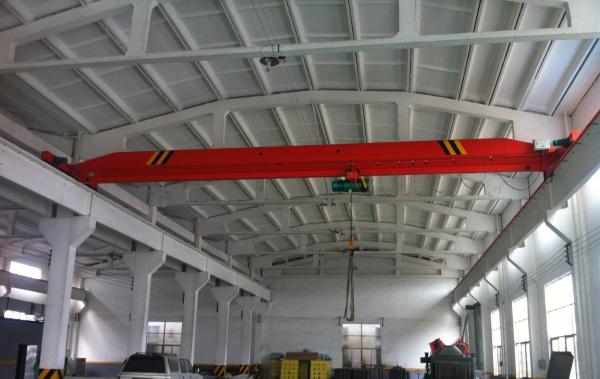

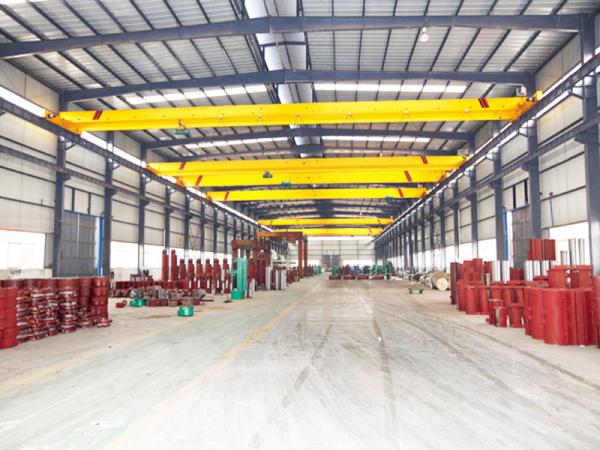

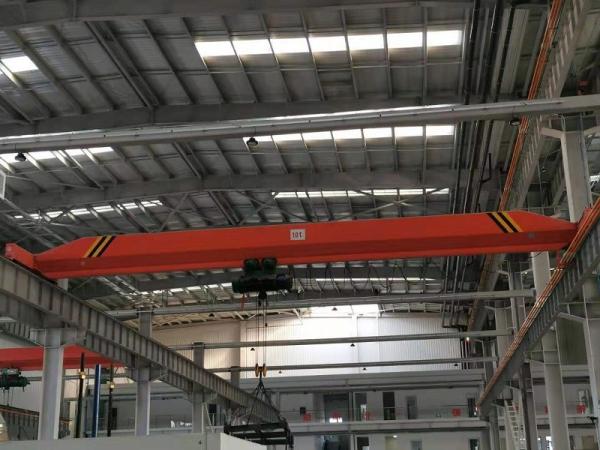

LDA Single Girder Bridge Crane Images

LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min

LDA Type Single Girder Bridge Crane Electric Overhead Crane 5 Ton 30m / Min
