Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Wire Rope Electric Monorail Hoist For Gantry Crane 20t
Specifications
Brand Name :
SGY
Model Number :
CD MD
Certification :
CCC CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
USD250.00-5000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packed by high quality wooden boxes, to reduce distortion in conveying
Material :
Q235B
Safe Function :
Weight overload/Current overload/Voltage lower protection and so on
Control Method :
Press button,remote control
Sling Type :
Wire rope
Rated Loading Capacity :
20t
Working temperature :
-25℃~+40℃
Lifting speed :
3.5-8m/min
Color :
Customised
Type :
Liftling Equipment
Description

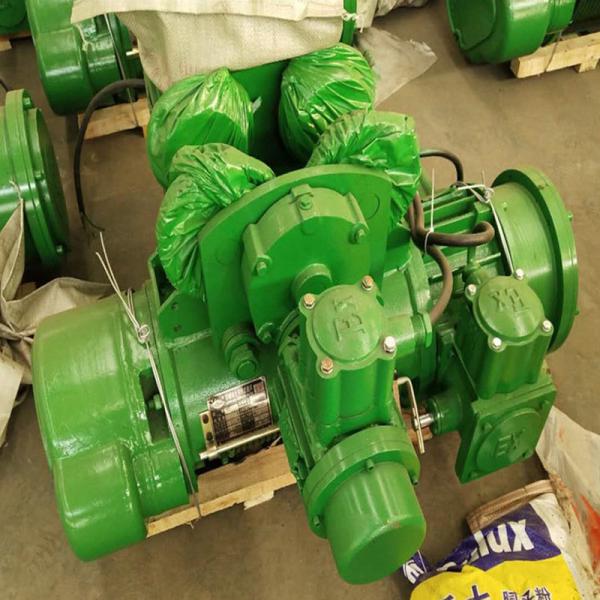

BCD /BMD Model Explosion Proof Wire Rope Electric Hoist

Brief Introduction

Explosion-proof hoist is a kind of electric crane which is easy to use and carry, The explosion-proof electric hoist can be matched with the explosion-proof electric monorail trolley to form an electric lifting and transporting trolley, Explosion-proof electric hoist can be widely used in oil, petrochemical, oil station, oil depot, gas production, chemical industry, military industry, electric power, mine, electronics, railway, etc. , There is no mechanical spark when products collide with each other in the operation, Effective prevention of fire accidents, Ensuring the safety of state property and persons. It is also an indispensable special tool for mechanical manufacture and mechanical maintenance.

The explosion-proof wire rope electric hoist has explosion-proof function and high working level; it is safer, more reliable, and has a lower failure rate; it can compete with advanced products and is world-renowned. The explosion-proof wire rope electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It can be used on the I beam track or single beam crane and it can be installed on the fixed support as a use of weight lifting.

Technical parameter

Model HB (ExdIIBT4, ExdIICT4 )
Lifting Weight (t) 0.25 0.5 1 2 3 5 10 16
Lifting Height (m) 3~9 6~12 6~30 6~30 6~30 6~30 9~30 9~30
Lifting Speed (m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Running Speed (m/min) 20 20/30 18
Running Rail (m/min) 10-20b 16-28b 10-20b 20a-32c 10-20b 25a-50b 32b-50b 32b-63c
Power 3-phase AC380V 50Hz

Main Features

1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel

2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4. Protection grade: IP54, work grade: M3

5. Over load limit is available. Hook is widen and thicken

6. Power-Off protection, Emergency stop system.

7. Low noise, soft starting and stopping

8. Safe and reliable operation

9. One year warranty for whole machines

10. Providing free quick-wear part

11. Low charge for continue maintenance when warranty is expired

12. Exclusive engineer support at any time.

13. Highly professional training to end-users.

MOTOR
Explosion-proof electric hoist hoist hoist motor and the operation of the motor are explosion-proof, a little longer than ordinary motor, level for Ecd IICT4.
LOWER HOOK
Explosion-proof electric hoist under the hook is explosion-proof, not only Hook pulley out of the rope with copper, Hook head is stainless steel.
ELECTRICAL BOX AND HANDLE
The electric box and handle of the explosion-proof electric hoist are explosion-proof, Compared with the ordinary electric hoist, the electric box of the explosion-proof electric hoist has a large volume, Heavy weight, stronger handle, better water resistance.
FLAMEOUT LIMITER
Explosion-proof electric hoist fire limit device is explosion-proof, compared with the ordinary large volume, weight, and the surface has EX explosion-proof mark.
ROPE GUIDE
Explosion-proof wire rope electric hoist rope guide is explosion-proof, containing copper.
SPORTS WHEEL
Explosion-proof wire rope electric hoist running wheel is explosion-proof, that is, in the ordinary running wheel manual stainless steel welding Rod.
