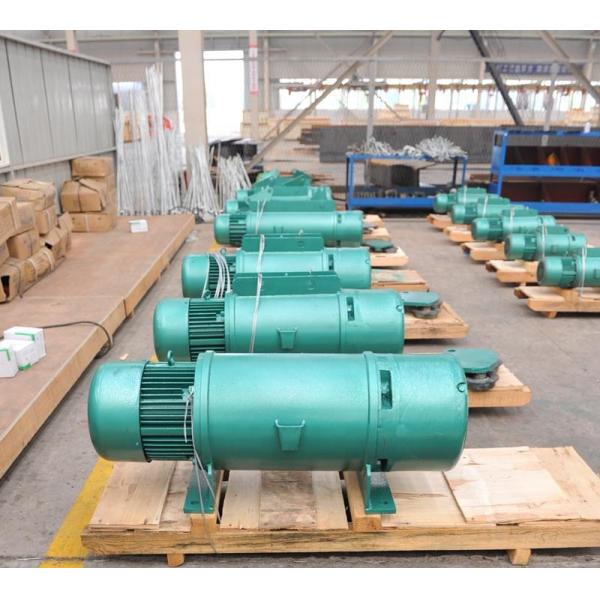

Wire Rope Electric Crane Hoist 2 ton CE Certification
Wire Rope Electric Crane Hoist 2 ton CE Certification
Wire Rope Electric Crane Hoist 2 ton CE Certification
Wire Rope Electric Crane Hoist 2 ton CE Certification
Wire Rope Electric Crane Hoist 2 ton CE Certification
Wire Rope Electric Crane Hoist 2 ton CE Certification
Specifications
Brand Name :
SGY
Model Number :
CD MD
Certification :
CCC CE ISO SGS,ISO BV CE
Place of Origin :
China
MOQ :
1 set
Price :
USD250.00-5000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 60days after deposit received.
Packaging Details :
Packed by high quality wooden boxes, to reduce distortion in conveying
Product Name :
Bcd /Bmd Model Explosion Proof Wire Rope Electric Hoist CE Certification
Material :
Q235B
Safe Function :
Weight overload/Current overload/Voltage lower protection and so on
Working duty :
A3
Rated Loading Capacity :
20t
Lifting speed :
3.5-8m/min
Condition :
New
Type :
Liftling Equipment
Maximum lifting weight :
20t
Description

BCD /BMD Model Explosion Proof Wire Rope Electric Hoist CE Certification

Brief Introduction

The BCD model electric hoist is explosion proof hoist, it is developed from CD model electric hoist, the motors and electrical organs are explosion proof protection, it is used in the environment that mixed with inflammable gas/oil, the duty class is intermediate-M3. This hoist is applicable to workshop where the Explosion conduction is lower than IIB or IIC, the burning point of inflammable gas is not higher than T4.

The explosion-proof wire rope electric hoist has explosion-proof function and high working level; it is safer, more reliable, and has a lower failure rate; it can compete with advanced products and is world-renowned. The explosion-proof wire rope electric hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. It is widely used in factories, mines, harbours, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It can be used on the I beam track or single beam crane and it can be installed on the fixed support as a use of weight lifting.

Technical parameter

Model HB (ExdIIBT4, ExdIICT4 )
Lifting Weight (t) 0.25 0.5 1 2 3 5 10 16
Lifting Height (m) 3~9 6~12 6~30 6~30 6~30 6~30 9~30 9~30
Lifting Speed (m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Running Speed (m/min) 20 20/30 18
Running Rail (m/min) 10-20b 16-28b 10-20b 20a-32c 10-20b 25a-50b 32b-50b 32b-63c
Power 3-phase AC380V 50Hz

Main Features

1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel

2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4. Protection grade: IP54, work grade: M3

5. Over load limit is available. Hook is widen and thicken

6. Power-Off protection, Emergency stop system.

7. Low noise, soft starting and stopping

8. Safe and reliable operation

9. One year warranty for whole machines

10. Providing free quick-wear part

11. Low charge for continue maintenance when warranty is expired

12. Exclusive engineer support at any time.

13. Highly professional training to end-users.
