Specifications
Brand Name :
YT
Model Number :
Chain Hoist
Certification :
CR ISO
Place of Origin :
Xinxiang,Henan Province,China
MOQ :
1set
Price :
USD300-1000USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000sets per year
Delivery Time :
10-30work dyas
Packaging Details :
The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.
Mechanism :
M3
Main electrical parts :
Siemens or CHINT brand
Weight overload protection function :
Include
Current overload protection system :
Include
Can be installed on :
Single girder crane, or I-beam, H-beam
Color :
Customised
After Warranty Service :
Video technical support
After-sales Service Provided :
Online support
Description

M3 Large Tonnage Wire Rope Electric Crane Hoist Single-speed Two-speed Small

Product Description

"Electric chain hoist", also known as electric chain hoist, is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards. The body is beautiful in appearance, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. The most advanced technology in the world is adopted, with fine workmanship and tight fit between the gears.

Technical Details Sheet

Capacity
(t)

Model

Lifting speed
(m/min)

Motor power
(kw)

Lifting height
(m)

Lifting rate

Working duty FEM/ISO

0.25

NLG20250

2.0/8.0

0.09/0.36

3~8

1/1

1Am/M4

0.32

NLG20320

2.0/8.0

0.18/0.75

1/1

3m/M6

0.5

NLG20500

2.0/8.0

0.18/0.75

1/1

1Am/M4

0.63

NLG20630

2.5/10

0.45/1.90

2/1

2m/M5

1

NLG31000

2.5/10

0.45/1.90

1/1

1Bm/M3

1.5

NLG31500

1.25/5.0

0.75/3.0

1/1

1Am/M4

2

NLG32000

1.25/5.0

0.45/1.90

2/1

1Am/M4

2.5

NLG32500

1.25/5.0

1.2/4.8

1/1

1Am/M4

3

NLG33000

1.25/5.0

0.75/3.0

2/1

1Am/M4

5

NLG35000

1.25/5.0

1.2/4.8

2/1

1Am/M4

Product advantages

  • New simple design
  • Fully sealed body
  • New die cast aluminum housing
  • The device has light weight
  • High efficiency motor, high efficiency transmission
  • Maintenance-free design
  • Simple operation, light and practical
  • Service life is greatly improved
  • Safe and reliable, improve operation efficiency
  • High working effiency;
  • Smooth movement &comfortable operation;
  • Convenient maintenance & aesthetic painting;
  • Light deadweight, light wheel load and reliable performance;
  • Customized: design and manufacture according to your request.

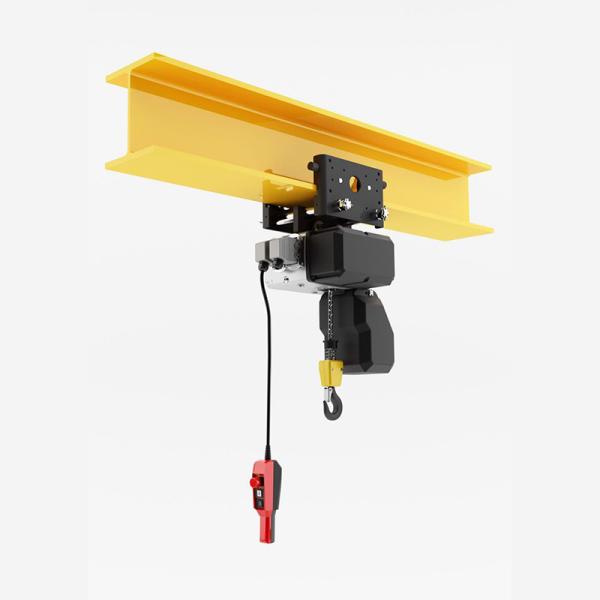

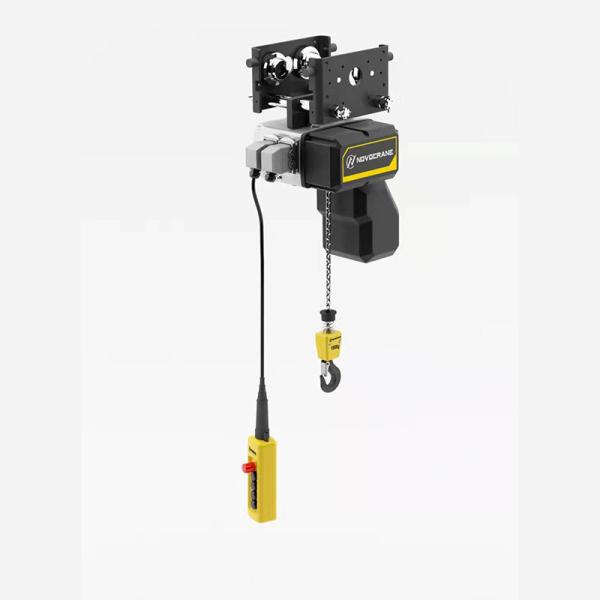

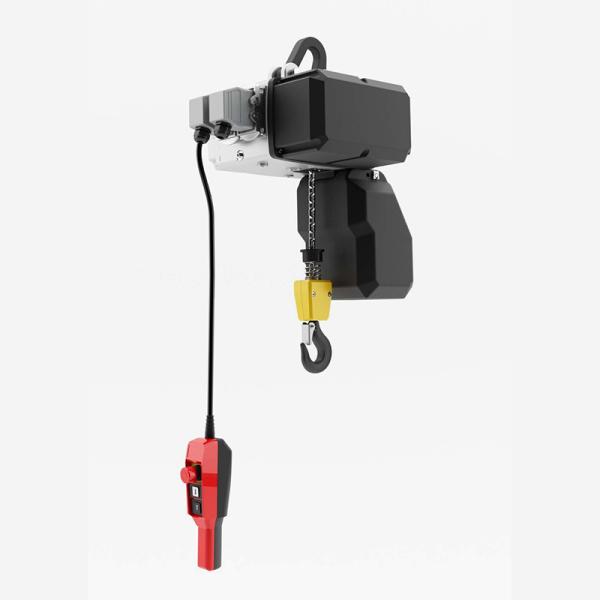

Product Sketch

M3 Large Tonnage Wire Rope Electric Crane Hoist Single-speed Two-speed Small

M3 Large Tonnage Wire Rope Electric Crane Hoist Single-speed Two-speed Small
