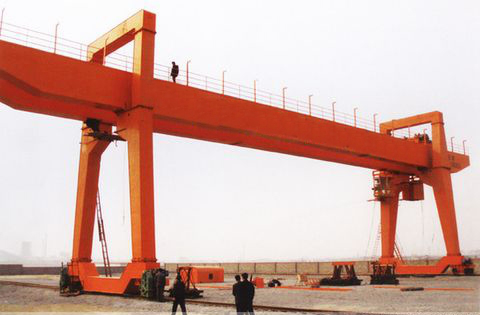

Q345 Steel Stationary Gantry Crane Double Beam Overhead Crane 20-50 Ton

Product Description

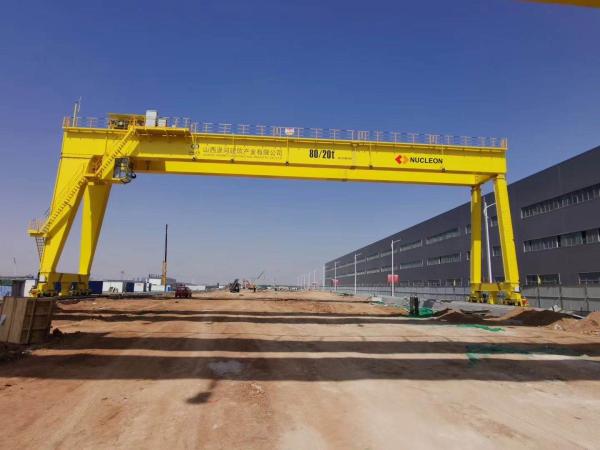

MG/A Type Double Beam Gantry Crane is suitable for general loading, unloading, lifting and handling in open cargo yard.Double girder gantry Crane is widely used together with winch or trolley for lifting device.

The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.

There are two working levels, A5 and A6. The trolley of this crane adopts flexible cable to conduct electricity, and the trolley is powered by sliding contact or cable reel. There are three modes of operation: ground control, operation room control and remote control for users to choose. The standard operation mode is room control, and all the mechanisms are operated in the driver's cab and are equipped with rain-proof equipment.

Technical Details Sheet

Features:

1, Trolley running mechanism and long travelling mechanism adopts three in one reducer, convenient maintenance.

High wind alarm, anti - broken shaft, anti - tipping and other security measures are complete.

2, It is a medium and heavy size crane which travels in track.
3, Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.
4, Its proper working temperature is -20--+40 centigrade and with three working class: A5, A6, A7.

5, Gantry crane has two control methods namely remote control and cabin control, or two control models together.

6, Power is supplied by cable or slide wire.

Product Sketch

Product Configuration

1. Double box beam with steel legs moving through the ground beam as crane travelling system

2. The camber of main beam will be designed as Span*1-1.4/1000.

3. Steel Material: Q235 or Q345

4. Shot-blasting Sa2.5 for main girder and supporting beam

5. Epoxy zinc rich high quality painting.

6. Electrification and outfitting

7. Brand: CHINT SIEMENS Schneider

8. Conductor power supply: Cable Reel or busbar.
