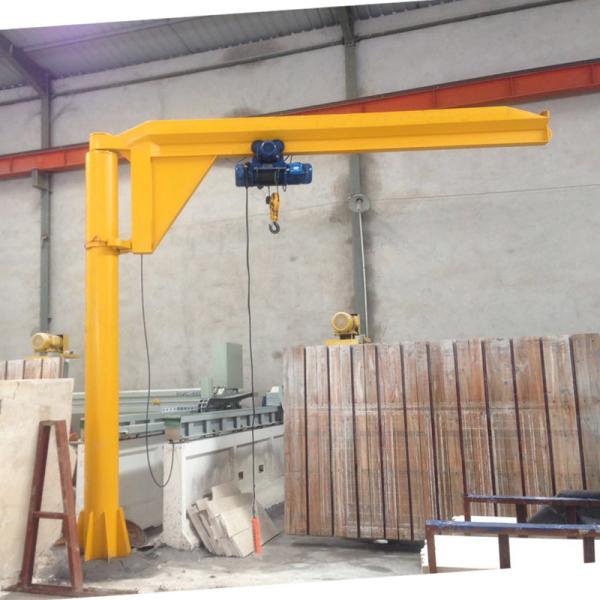

Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
Specifications
Brand Name :
SGY
Model Number :
BZ
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 Set
Price :
USD1500.00-6000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 15days after deposit received.
Packaging Details :
Packing of jib crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Rotation angle: :
180~360 degrees
Lifting speed :
0~8m/min
Warranty :
18 months
Lifting mechanism :
Electric hoist or chain hoist
Type :
Flexible
Color :
Customer's Requirements
Travelling Speed :
20m/min
Control method :
Remote Control/pendant
Description

High Technical Electric Revolving 360 Degrees Column Or Pillar Swing Lever Jib Crane

Description

Column cantilever crane is a kind of light and small lifting equipment. It has the advantages of novel structure, high efficiency,energy saving, time and labor saving, reasonable, simple, convenient operation, flexible rotation, and large working space.


•Random operation in the three-dimensional space, in short-distance and intensive transportation occasions, shows its superiority than other conventional lifting equipment, and is an energy-saving and efficient material lifting equipment. It can be widely used in fixed places such as workshop production lines, warehouses, and docks

Usage

Industry demands versatile, efficient, and cost effective equipment while at the same time providing more flexibility along with significant savings through increased productivity. A jib crane can help improve materials handling efficiency and work flow. Serious consideration should be given to jib cranes for applications requiring repetitive lifting and transferring of loads within a fixed arc of rotation.

The versatility of Our Light to Medium Duty Slewing Jib Cranes are unmatched. Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization.

Jib crane can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans. Expand the Jib Crane utility further by using it as an auxiliary lifting device under an overhead crane or by attaching a hoist or drive.

Technical parameter

Rated Capacity
t
0.5
1
2
3
5
10
Beam length
mm
2000~6000
Lifting height
mm
2000~6000
Lifting speed
m/min
8; 8/0.8
Travelling speed
m/min
10; 20
Turning speed
r/min
0.76
0.69
0.6
0.53
0.48
0.46
Turning degree
degree
360°
Duty Class
A3
Power source
380V, 50HZ, 3 phase (or other standard)
Working temperature
-20~42°C
Control model
Pendant pushbutton control or remote control

Features

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Safety protection system

a. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible

b. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
c. Safety hook latch used for avoiding the lifted material out off from the hook
d. Protective earth conductor is fitted as standard
e. Voltage lower protection system
f. Current overload protection system


Column Or Pillar Swing Lever Jib Crane Electric Revolving 360 Degrees
