LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
Specifications
Brand Name :
SGY
Model Number :
LX
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 Set
Price :
USD4000.00-12000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 20days after deposit received.
Packaging Details :
Packing of overhead crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
name :
LX Single Girder Overhead Crane
keywords :
Single Girder Overhead Crane
Condition :
New
Warranty :
12 Months
Span :
7.5-31.5m
Feature :
Suspension Bridge Crane
Max. lifting load :
10 ton
Application :
workshop,plants,factory,warehouse and so on
Control method :
Wireless Remote Control,Ground control,Pendent line
Color :
Clients' Requirments
Description

LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 M Span

LX Single Girder Overhead Crane Description

LX model single beam underslung crane and CD1/MD1 model electric hoist are used together as a complete set. It is a light duty
track travelling crane with trajectory which applies to and used at machinery, assembling sites and warehouse. This product adopts
ground controlling and works at a temperature of -25 ℃ to 40 ℃. It is provided to use the equipment at combustible, explosive or
corrosive environment.

LX Single Girder Overhead Crane Features and Advantages

1. Save space, the height of the hoist itself will not exceed the height of the H-shaped steel, and the upper part of the H-shaped steel can be completed.

2. Power off and brake, safe and stable, plus buffering device, no damage to products and equipment

3. Adopt three-in-one motor, stable operation, reduce noise, copper wire motor, long life, low power consumption

4. High-quality hardened gears, stable and durable

5. The span is lengthened and space is used efficiently

6. Using C-shaped steel slide, it is safer and more durable, not easy to wear

7. Can be designed with external suspension.

LX Single Girder Overhead Crane Technical parameter

The general details of single beam suspension overhead crane

Capacity

0.5ton, 1ton, 2ton, 3ton, 5ton, 10ton

Span(rail to rail center)

3m~16m

Lifting height

6m, 9m, 12m, 18m, 24m, 30m

Lifting speed(m/min)

8(or 8/0.8), 7(or 7/0.7)

Cross travelling speed(m/min)

10, 20, 30

Long travelling speed(m/min)

10, 20, 30

Duty Class

A3/A4

Power source

380V, 50HZ, 3 phase (or other standard)

Working temperature

-20~40℃

Control model

Pendant pushbutton or remote control
LX Single Girder Overhead Crane Features
1. The structure: hoist, single girder, end girders, electric control system, low height, small size, light weight, small pressing wheels;
2. The operation mode: cable operation, wireless remote control;
3. Advanced design concept the crane with outstanding distribution and performance, also at the maximum level of narrowing the lifting hook the operating limit of interval, effectively improves the space utilization, also make the customer may reduce the plant investment costs.
4. High performance braking system with anti-dust device can be automatically adjusted, safe service life more than 1000000 times.

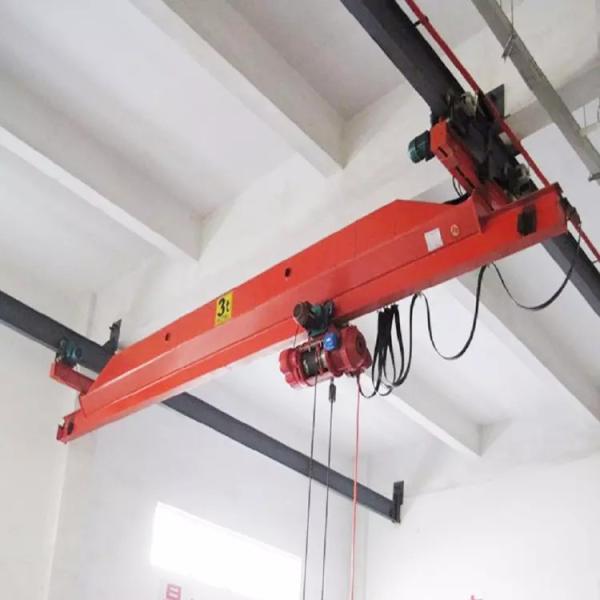

LX Single Girder Overhead Crane Image
LX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m SpanLX Single Girder Overhead Crane Wireless Remote Controlled 7.5 - 31.5 m Span
