Specifications
Brand Name :
SGY
Model Number :
CD MD
Certification :
CE ISO GOST
Place of Origin :
Henan,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 sets per year
Delivery Time :
30 work days
Packaging Details :
Export standard packaging
Product name :
3.2ton 5ton 10ton 20ton European Wire Rope Electric Hoist With Remote Control
Lifting weight :
3.2~20ton
Lifting height :
6~20m
Lifting speed :
5/0.8m/min 4/0.66m/min 3.4/0.5m/min
Travelling speed :
20/2m/min
Power Source :
380V,50HZ,3 phases or customizable
Control Method :
Pendant control Remote control
Warranty :
1 year
Painting :
Customizable
Machinery test report :
Provided
Description

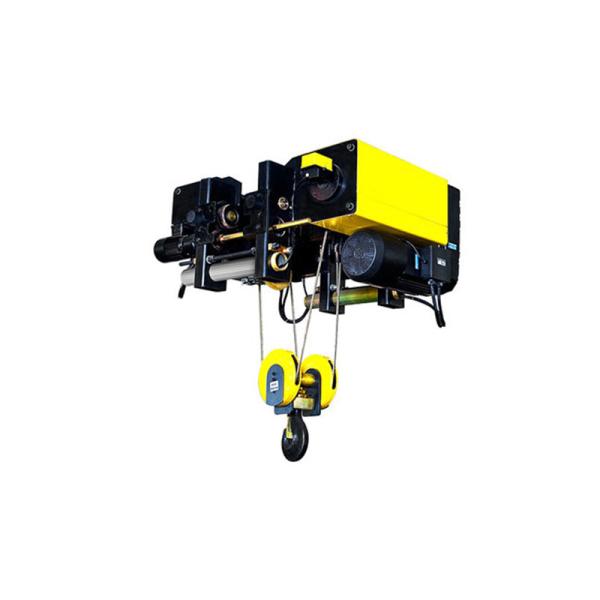

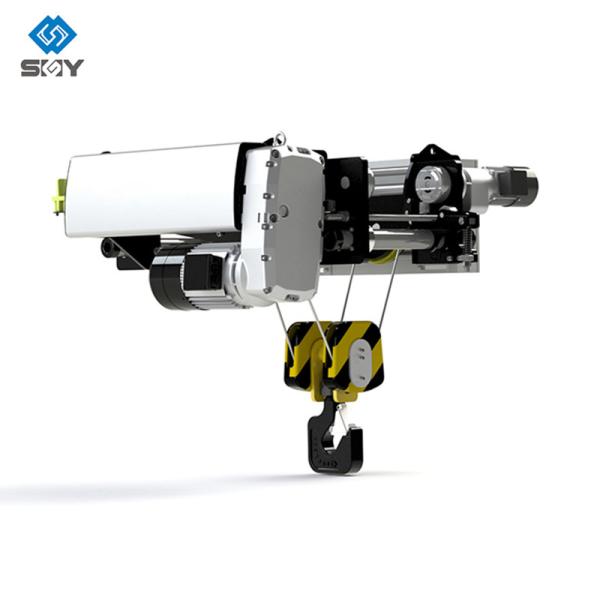

3.2ton 5ton 10ton 20ton European Wire Rope Electric Hoist With Remote Control

Product Description:

European electric wire rope hoist is a kind of special lifting equipment, installed on overhead crane and gantry crane. It has features of small volume, light weight, simple operation and convenient use, etc, which is used for industrial and mining enterprises, storage terminals and other places.

We can supply hoist with lifting capacity: 3.2-20t, lifting height: 6-20m, work class: A5, speed: single /double speed. We also design and manufacture the nonstandard crane according users’ demanding.

Features Of European Electric Wire Rope Hoist:

1. high working effiency
2. smooth movement ,comfortable operation
3. light deadweight,and reliable performance
4. customized design and manufacture according to your request

1. Reducer

Adopt third-step reducer powered by conic motor, all gears and driving axle assembly heated in special process, and thanks to the cast hoist cover and separate-unit reducer, it guarantee a good leak-resist characters and easy maintenance.

2. Upper/Bottom Limit

Thanks to upper and bottom limit, this can cut the circuit automatically to keep the hoist in good conditions in case the wrong operations occurred, so the wire rope hoist can use longer.

3. Wire Rope Cable

Use the GB1102-74(6*37+1) wire rope, it guarantees the lift wire rope durable.

4. Conic Motor

Lifting motor adopt conic motor, which can guarantee the brake operation be sound all the time without extra brake-device. The work mechanism of wire rope hoist 25%, insulation class meets grade B or F, then motors protection grade meet IP44/IP54.

5. Control-Unit

Portable control-unit, wire and remote control available.

Capacity Working duty Lifting height Lifting speed Rope reeving Traveling speed Wheel load weight
1.6 M6 6, 9, 12 1.6/10 2/1 2~20 6.1, 6.2, 6.3 300, 335, 370
2.5 M6 6, 9, 12 0.8/5.0 4/1 2~20 9.1, 9.2, 9.3 315, 350, 385
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.5, 11.6, 11.7 335, 370, 405
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 22, 22.1, 22.2 400, 450, 500
8 M6 6, 9, 12 0.8/5.0 4/1 2~20 28, 28.1, 28.2 580, 610, 640
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 34.7, 34.8, 34.9 580, 610, 640
10 M6 6, 9, 12 0.66/4.0 4/1 2~20 34.7, 34.8, 34.9 650, 690, 730
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 43.3, 43.4, 43.5 660, 700, 740
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.9 510, 525, 540
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 20.9 632, 652, 672
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 30.0 871, 896, 921
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 40.5 890, 915, 940
16 M5 6, 9, 12 0.66/4.0 4/1 2~20 59.4, 59.7, 60.0 1314, 1348, 1381
20
 M5
6, 9, 12
0.5/3.4
 4/1 2~20
59.5
1718, 1766, 1814
32
 M5 6, 9, 12
0.8/3.3
6/1
2~20
95, 104
2826, 2920, 3091, 3199
