Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Specifications
Brand Name :
SGY
Model Number :
MH
Certification :
CE ISO GOST, SGS, TUV, BV
Place of Origin :
China
MOQ :
1 Set
Price :
USD6000.00-32000.00
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per year
Delivery Time :
Within 20days after deposit received.
Packaging Details :
Packing of crane: 1. Electric parts are packed by high quality wooden boxes, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Name :
MH electric hoist gantry crane
keywords :
single beam gantry crane
Warranty :
18 Months
Span :
12-30m
Condition :
New
Feature :
Gantry Crane
Application :
Outdoor,Widely
Max. lifting load :
32ton
Color :
Customer Requirements
Main electrical parts :
Schneider
Description


Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance​

MH Type Electric Hoist Gantry Crane Introduction

The MH electric hoist gantry crane is used with CD, MD and other types of electric hoist. It is a small and medium-sized crane with rail operation. Its applicable crane capacity is 3-32 tons, applicable span is 12-50 meters, and working environment is -20 ~ 40. ° C.

This product is a general-purpose using crane,which is mostly used for loading and unloading or grasping materials in open aerial and warehouses. The crane control mode have ground control and cabin control. The crane structural frame have truss type, box type, top box with truss leg type for choose

Truss type MH type single girder gantry crane is light in dead weight and strong in wind resistance.

MH Type Electric Hoist Gantry Crane Technical Parameter

Rated load/ton

5

10

16

20

Span/m

10-40

Lifting height/m

30

Working class

A3/1bM

Lifting speed/m/min

8

7

3.5

3.5

Trolley running speed/m/min

20

20

20

20

Crane running speed/m/min

20

20

20

20

Dead weight/t

10.5~37.5

16.8~52

18.9~65

24.5~77

Safe features of MH Type Electric Hoist Gantry Crane

✔ Crane traveling limit switch
✔ Weight overload protection device
✔ Lifting height limit device
✔ Voltage lower protection function
✔ Phase sequence protection function
✔ Emergency stop function
✔ Rain cover for outside hoist, driving units, electrical cubicle.
✔ Warning indicator: flashing lights and warning sound.
✔ Wireless infra-detector for anti-collusion

MH Type Electric Hoist Gantry Crane Parameter
1. Lifting capacity is 3.2ton to 32ton;
2. Span is 12-30m;
3. Lifting height is 9m;
4. Working duty is A5;
5. Working temperature is -20°C to + 50°C.
MH Type Electric Hoist Gantry Crane Application
1. material stocks area
2. cement plant
3. granite industry
4. engineering industry
5. construction industry
6. shipping yards
7. road sides
8. mines plant
9. steel plant
10. concrete girder yard, etc


MH Type Electric Hoist Gantry Crane Advantage

1.Simple and compact structure, steady performance.
2.Easy to install and high efficiency.
3.Overload, low voltage protective device.
4.Pendent control and remote control.
5.Easy maintenance.

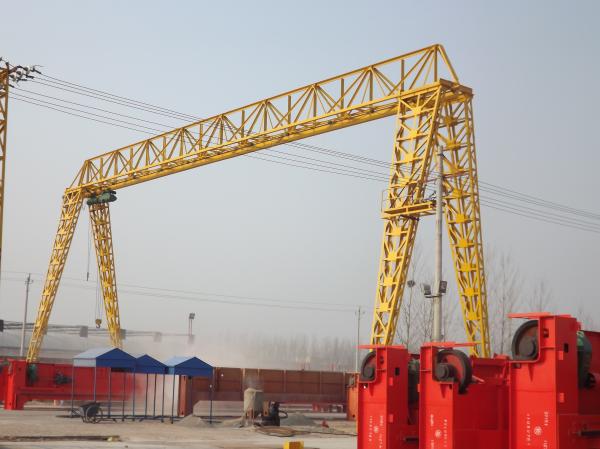

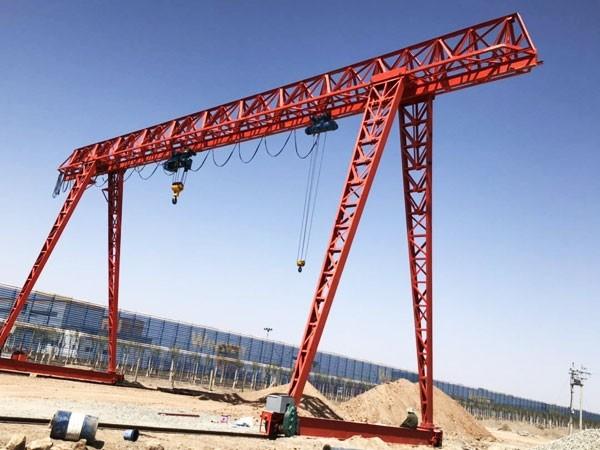

MH Type Electric Hoist Gantry Crane Image
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
Outdoor MH Type Electric Hoist Gantry Crane Single Beam Wind Resistance
