5 Ton Europe Style European Single Girder Workshop Overhead Traveling Bridge Crane

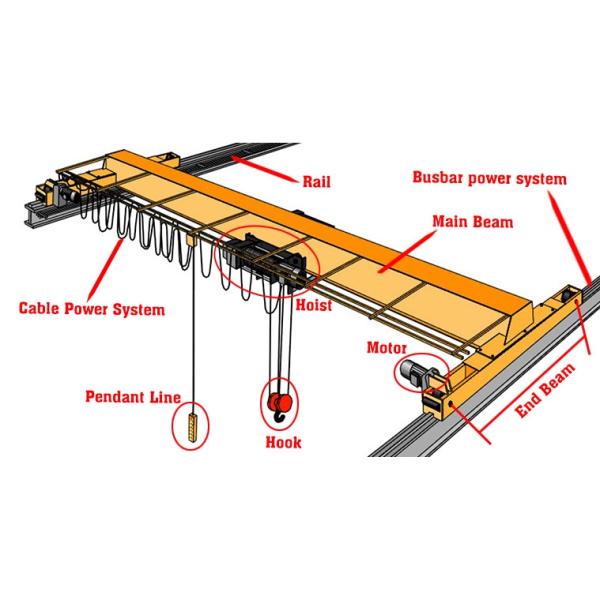

Description of European Type single girder overhead crane

Europe overhead crane advanced designed crane for the low headroom and high lifting height demands. It has many advantages such as:

Strong rigidity, light dead weight, outstanding structure design, long working lift etc. It could save your factory space and investment effectively.

Its technology is advanced and design is based on international standard: DIN (Germany),FEM (Europe), and ISO (International)

The all motions of this overhead crane are double speeds, the lifting motor is double speed type,the cross travelling motor and long travelling motor are controled by frequency inverte.

It could be widely used to handle materials in many industries' workshop and warehouse,such as manufacture processing, warehouse, storage, paper mill, electronics industries workshopand other material handling situation

Crane capcity: 0.5ton-20ton

Crane span: 7.5m-35.5m

Crane lifting: 3m-37m

Working duty: A5

Control mothed: Wireless Remote

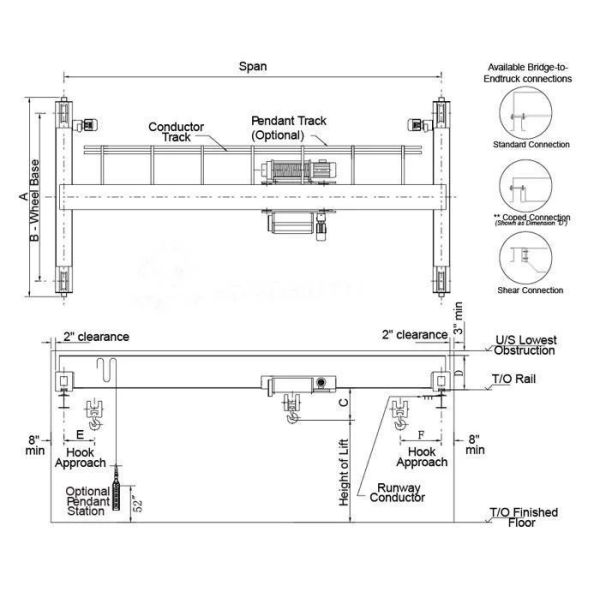

Technical parameter of European Type single girder overhead crane

Product Features of European Type single girder overehad crane

1). Single welding box girder

2). DIN/FEM standard deflection

3). Whole length CNC cutting for complete web plate, high deflection accuracy

4). High quality automatic welding and NDT inspection

5). Shot-blasting Sa2.5 for complete girder after welding, stress release

6). High tension bolts mounting between girder and legs, life time safety connection

7). Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55

8). High protection class IP55, F class, 40% ED

9). Excellent driving properties, stepless control, smoothly moving

10). All hoist and crane movements are independent and can be run simultaneously.

Packing and shipping of European Type single girder overehad crane
