Portable Gantry Crane Small Wheel Type Gantry Crane with Driving Motor

Product presentation

Portable Gantry Crane Small Wheel Type Gantry Crane with Driving Motor adopts Q235 steel, polyutherane wheel, high quality I beam, square tube, adding driving motor in the ground beam, helps motorized travelling, it is a large advantage on previous standard portable gantry crane. We can equip either wire rope electric hoist or electric chain hoist according to your requirement. If you need high lifting speed, you can choose wire rope electric hoist, if you need high lifting height under same crane height, you can choose electric chain hoist.

Advantages of portable gantry crane

1. The lifting weight of the gantry frame can reach 10 tons, with a variety of installation configurations and spans. Can be used with hand hoist, chain hoist, wire rope hoist.
2. Prefabricated standard modular design makes movement easier.
3. It can be installed on any ground without putting pressure on the roof structure of the building.
4. High lifting capacity.
5. Wide applicability and can be applied in many materials handling environments.
6. Economical for individual work units.
7. Easy installation, reducing installation time and cost.
8. It can increase operators' satisfaction.
9. The safe operating environment can be realized.
10. Reduce the labor force and improve production efficiency.

Product details

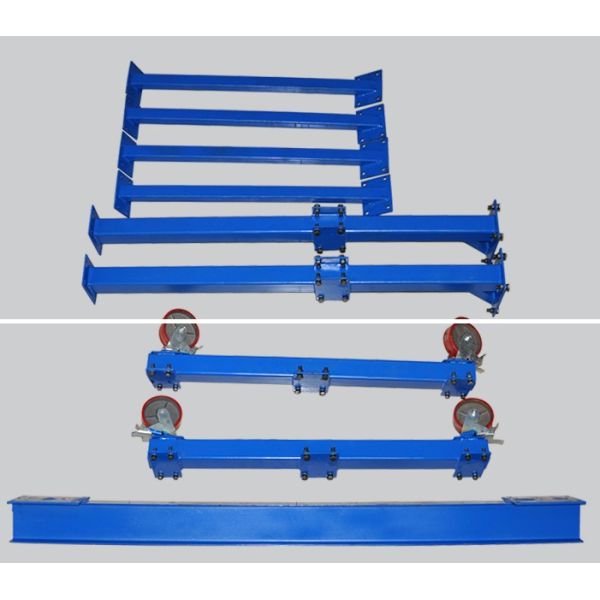

1. Steel structure: Q235B carbon steel structure steel adopts a seamless forming process, more solid and beautiful:

Galvanized epoxy resin paint

Three layers of paint

2. Electric trolley type chain hoist:

Chain lift, single-speed

High strength low alloy steel structure, with motor and high wear-resistant wheels, compact structure, easy to install

Insulation class

3. Welding and spraying

4. Class 8.8 high strength bolts

5. The safety screw

6. Iron core polyurethane universal brake casters

Technical parameters

FAQ

1. Can u send me your price list ?

Sorry dear friend, as you know, if u are enduser , we can customize your gantry crane according your working environment. So pls tell me your information bellow, so i can give your quick offer .

a: Lift capacity b: Lift height c: Span length d: Power source f: Working environment.

2. Can u draw for us ?

Yes , we have good experienced technicians , we can design and draw for your own portal gantry crane according your requirements to solution your problems.

3. Operating methods for selection ?

A : Pendent controller with push buttons

B : wireless controller

We integrate all circuit in the controller to control the gantry crane move front and back , the hoist lift up and down , travel left and right .

4 . Can u provide the lifting tools series ?

Sure, we can provide any other lifting machinery you need , such as pallet stacker , truck and so on .

5. How to install the mobile gantry crane ?

We can send u the install operate manual or video , it’s easy to install the crane, but if u need our engineer can be your side.

6. What is your lead time ?

The lead time is 15 days for one set .
