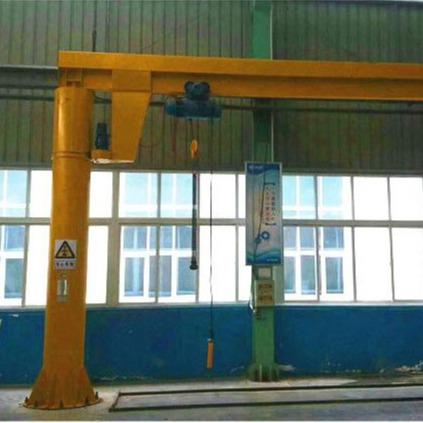

Q235B Carbon Structural Steel 1 Ton Pillar Mounted Jib Crane 180° Rotating Energy Saving

Product presentation of Pillar Mounted Jib Crane

The working duty of the BZ type jib crane is light. The crane consists of a column, a slewing arm slewing device and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. The cycloidal pinion reduction device drives the jib rotation. The electric hoist is at The spiral arm I-beam runs on the left and right lines and lifts heavy objects. The swing arm of the crane is a hollow steel structure with light weight, large span, large lifting capacity and economical and durable. The built-in row jib crane MODE type walking mechanism adopts special engineering plastic wheel with rolling bearing, which has small friction and light walking; the structure size is small, which is especially beneficial to improve the hook stroke.

Technical parameters of Pillar Mounted Jib Crane

Features of Pillar Mounted Jib Crane

Compact Design
The advanced design idea gives the crane light structure and excellent performance, at the same time narrows the hook operation distance to the maximum, and improves the space utilization rate effectively. So our high quality products will be your best choice.

Smooth, Fast Loading
The standard configuration of the crane are the trolley and crane both having stepless frequency conversion control system, with features of braked stably, accurate location, and reliable performance, which make traveling steady, positioning quick, solving the problem of swing of goods.

Safer, Reliable, Using Free Maintenance Design
The crane used the best technology in the whole process shows its superiority, especially in the frequent operations. The perfect braking system improves safety and reliability a lot, which can be adjusted by itself with dustproof design, and it can be used more than 1 million times. Hardening and polishing the tooth surface will make sure the crane operate without trouble.

Excellent Performance
As an important logistics equipment, if the crane is out of order, it will cause great damage. So our products always having high quality will be your best choice.

Advantage of Pillar-Mounted Jib Crane:

Free Standing column mounted on concrete foundation, erection and assembly and operation easily.
Pillar Jib Crane can rotate 360, 270 and 180 degree, matched with electric wire rope hoist or electric chain hoist.
Take up small space, easy installation and operation, simple structure, it is a perfect handling equipment used in small workshop.
Customized design for clients:Customized design according to the workshop or column size to satisfy clients’ different demand. Clients also can choose their favorite color for the jib crane.
