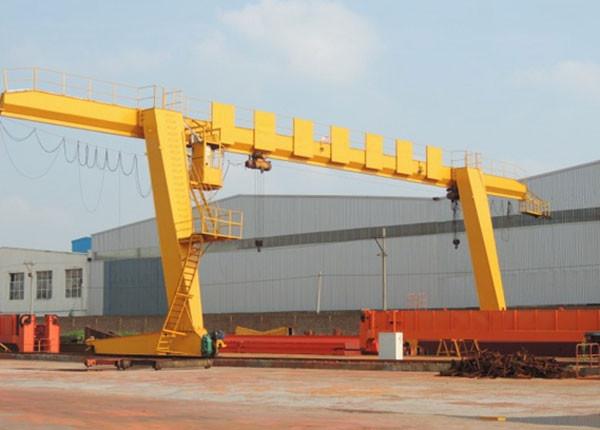

5 Ton Single Girder Gantry Crane Span 12-30m For Material Handling

Product presentation of Single girder gantry crane

Single girder gantry crane is usually regarded as a light duty gantry crane due to its single beam structure design, which is mostly used in outdoor, open air and other environments that do not have the conditions of column driving beams. The main beam is supported by two outriggers, and a ground beam walking mechanism is arranged under it, which walks back and forth along the track.

Technical parameters of Single girder gantry crane:

Single girder gantry crane can be divided into box type and truss type.

Box type

The box type single girder gantry crane is usually equipped with standard CD MD electric hoist as the lifting mechanism, and the electric hoist traversing along the lower flange of the I- steel of the main girder, which is made of high quality steel plates, such as, C-steel and I-steel.

Box Type Single Girder Gantry Crane Drawing

Truss type

The truss single girder gantry crane are different from the box type crane . The truss single girder gantry is made of steel bars, and the latter is made of steel plates. The truss gantry crane have many good advantages,it is much lighter than that of the box type gantry crane and it has high wind resistance.

Truss Type Single Girder Gantry Crane Drawing

Application of Single Girder Gantry Crane

MH type single girder gantry crane are regular crane designed for general material handling, often used in open ground, warehouse, ports, granite industry, cement pipeline industry, open pit yard, container yard, shipyard, etc. However, it is forbidden to deal with molten metals that are flammable. Or explosive objects.

MH single girder gantry crane safety feature

■ Overload protection devices is equipped which will give a sharp alarm warning when overloads happen.

■ Limit switches is used to prevent over lifting or lowering of the crane hook.

■ High quality polyurethane buffer is used to ensure a long time working life.

■ Room control and remote control are available for the sake of your operator’s safety.

■ Low voltage protection is used in case of the unstable voltage supply.

■ Emergency stop button is installed to brake the equipment when emergency happens.

■ Current overload protection system and others, etc.

Packing and shipping
