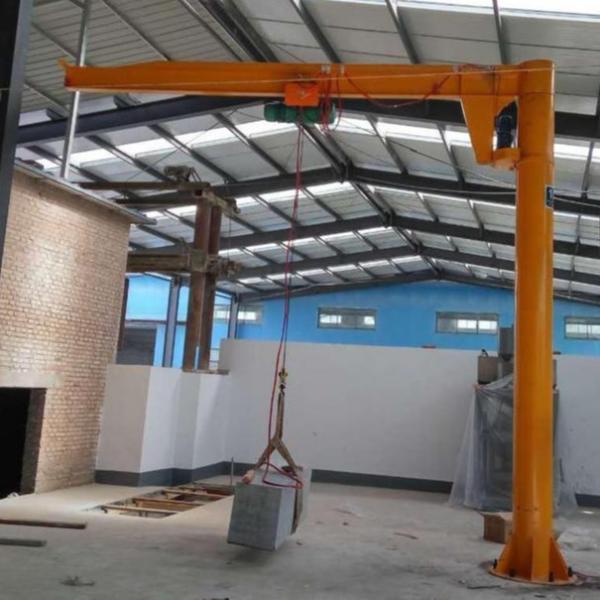

Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist
Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist
Specifications
Brand Name :
Silence
Model Number :
BZ、BZD
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 3000-15000/set
Payment Terms :
T/T, L/C
Supply Ability :
1 sets
Delivery Time :
15 days
Packaging Details :
Electrical, hoist and other parts packed by high quality plywood crate; Beams packed by rain proof plastic cloth
Type :
Pillar Mounted Jib Crane
Operating :
Motor Rotation
Color :
Customer's Requirements
Capacity :
1-10t
Max Height :
12m
Lifting mechanism :
Elctrical chain Hoist
Application :
Machining Workshop
Hoist :
Chain Hoist
Description

Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist

Product presentation of Pillar Mounted Jib Crane

Pillar Mounted Jib Crane is a kind of lifting equipment that uses a single column and swing arm to lift goods. The lower end of the column of a single-arm crane is generally fixed on a concrete foundation, and the swing arm can be rotated according to the needs of customers.It is an energy-saving and efficient material hoisting equipment.

Technical parameters of Pillar Mounted Jib Crane

Model Unit BZD0.5 BZD1 BZD2 BZD3 BZD5
Rated capacity t 0.5 1 2 3 4
Max. Lifting height m 3 4
Max. working range m 4 3
Max. turning radius m 5 4.5
Max. lifting torque tm 3 5.2 8.5 12.2 18.8
Rotation angle ≤360
Lifting speed m/min 8;8/0.8
Trolley travelling speed m/min 20
Rotation speed r/min 1 0.75 0.7 0.9 0.6
Weight kg 1000 1150 1350 3500 4500

Technical features of Pillar Mounted Jib Crane

Standard height to underside of beam of 3 metres and is available up to 4 metres upon request
Jib crane with hollow-section pillar for indoor use
270° rotation, with overbraced jib arm
This type of jib crane cannot be motorised
Oversized base plate available to potentially alleviate the need for a foundation
Polyurethane RAL1028 melon yellow painted finish
Power supply cable provided if required
Suitable for hoist with a maximum hoisting speed of 16mpm

Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist

Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist

Machining Workshop 1-10t Pillar Mounted Jib Crane With Chain Hoist

Please feel free to contact us for quotation.

In order to confirm the correct quotation for you, please confirm the following specifications:

1. Lifting capacity(t):

2. Lifting height(m):

3. Span(m):

4. Power source: __v/__hz/__phase

5. Materials to be lifted:

6. Crane working time per day(h):

7. Crane working environment:

8. Other special requirements:

Looking for pillar mounted jib crane? With wide experience and expertise, SILENCE is well-known as one of the largest manufacturers and suppliers in China. We are equipped with a professional factory which can guarantee you the high quality, high precision and reliable performance of our products.
