CKZF-C 700N.M 40mm ID Unidirectional Clutch Bearing Supported
CKZF-C 700N.M 40mm ID Unidirectional Clutch Bearing Supported
Specifications
Brand Name :
CHAOYUE
Model Number :
CKZF-C
Place of Origin :
Shaanxi, China
MOQ :
1 pc
Price :
USD 185.00 - 1650.00 / pc
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
product name :
CKZF-C Bearing Supported Flange Connect 300 - 18256 N.M
Inner Diameter :
30 - 130 mm
Outer Diameter :
128 - 380 mm
Length :
70 - 214 mm
Torque :
300 - 18256 N.m
Weight :
3.90 - 94.0 kg
Description

CKZF-C Bearing Supported Flange Connect 300 - 18256 N.M

Characteristics and Applications: CKF-A non-contact type one-way sprag clutch inner ring rotation. The inner ring is designed for only one-way function, no bearing support. You must install the bearing to ensure concentricity of the inner and outer rings of use. When used to prevent the use of the reversal must not be less than the rotational speed of inspection speed beyond the allowable value, the table on the following page specification. This model is mainly used for high speed conditions to prevent reversed, can be used for ultra high-speed operation than the speed of the clutch, keyed low double-speed drive switching means.

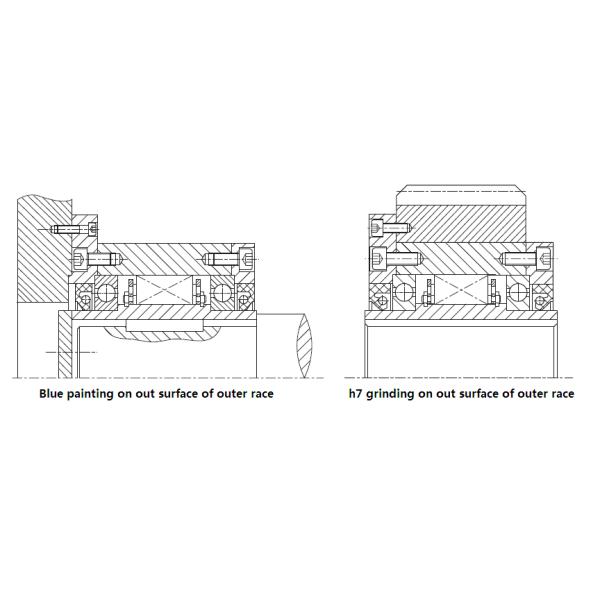

Mounting Example

CKZF-C 700N.M 40mm ID Unidirectional Clutch Bearing Supported

CKZF-C 700N.M 40mm ID Unidirectional Clutch Bearing Supported

Type Nominal torque
[N.m]		 Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]		 Weight
[kg]
nmin nmax d
[H7]		 D D1
[h8]		 D2 D3 H B L T n - d1 bn x tn
CKZF-C30100 300 780 6000 30 100 75 114 128 10 57 70 3.0 6 - 6.6 8 x 3.3 3.9
CKZF-C35110 370 740 6000 35 110 80 124 140 13 58.5 75 3.5 6 - 6.6 10 x 3.3 4.9
CKZF-C40125 700 720 5000 40 125 100 142 160 14 68.5 88 4.5 8 - 9.0 12 x 3.3 7.5
CKZF-C45130 702 665 5000 45 130 100 146 165 15 68.5 88 3.5 8 - 9.0 14 x 3.8 7.8
CKZF-C50150 1312 610 4000 50 150 110 166 185 14 78 97 4.0 8 - 9.0 14 x 3.8 10.8
CKZF-C55160 1483 600 4000 55 160 115 182 204 18 84 106 4.0 8 - 11 16 x 4.3 14.0
CKZF-C60170 1907 490 3200 60 170 125 192 214 17 101 116 4.0 10 - 11 18 x 4.4 16.8
CKZF-C70190 2511 480 3200 70 190 140 212 234 18 113 136 4.0 10 - 11 20 x 4.9 20.8
CKZF-C80210 3587 450 2400 80 210 160 232 254 21 120.5 146 4.0 10 - 11 22 x 5.4 27.0
CKZF-C90230 6423 420 2400 90 230 180 254 278 20.5 131 160 4.5 10 - 14 25 x 5.4 40.0
CKZF-C100270 11498 455 2000 100 270 210 305 335 30 150 184 5.0 10 - 18 28 x 6.4 67.0
CKZF-C130310 18256 415 2000 130 310 240 345 380 29 181 214 5.0 12 - 18 32 x 7.4 94.0
