4100N.M 210mm Outer Diameter One Way Clutch Assembly For Chemical Machinery
4100N.M 210mm Outer Diameter One Way Clutch Assembly For Chemical Machinery
Specifications
Brand Name :
CHAOYUE
Model Number :
CKZF-A
Place of Origin :
Shaanxi, China
MOQ :
1 pc
Price :
USD 165.00 - 1300.00 / pc
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
product name :
CKZF-A Chemical Machinery Overrunning Clutch Bearing 340 - 10870 N.M
Inner Diameter :
30 - 130 mm
Outer Diameter :
100 - 310 mm
Thickness :
68 - 212 mm
Torque :
340 - 10870 N.m
Weight :
2.3 - 70.0 kg
Description

CKZF-A Chemical Machinery Overrunning Clutch Bearing 340 - 10870 N.M

Bearings are basic components, bearings are standard parts, any desired rotation of the mechanical equipment required bearing support, and anti-friction bearing play is subjected to load acting in the machinery and equipment, rolling bearings and sliding bearings are generally divided into, at present, bearing has gradually been eliminated, but still has its uses, as is now increasingly widespread use of rolling bearings, the rolling element commonly used are: ball, cylindrical roller, tapered roller, a drum-shaped roller and roll There are five kinds of needles. We are rolling classification!

(1) according to the shape of the rolling element bearing and a ball bearing can be divided into two types of roller bearings.
And a rolling element ball bearing ring raceway point contact, low load capacity, poor impact resistance, but the friction is small, high speed limit, low price.
Roller bearing Rolling ring raceway is line contact, high load capacity, impact resistance, but the frictional resistance, the price is relatively high.
(2) by the number of rows of rolling elements, the bearings can be divided into single row, double row and multiple-row bearings.
(3) ability to work by self-aligning bearing rigidity can be divided bearings and spherical bearings.

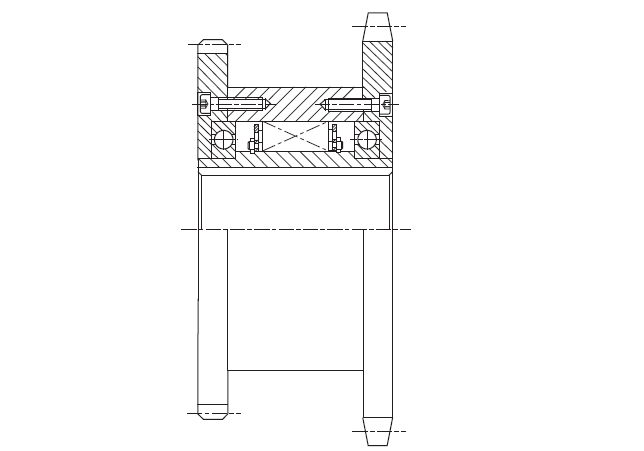

Mounting Example

4100N.M 210mm Outer Diameter One Way Clutch Assembly For Chemical Machinery

4100N.M 210mm Outer Diameter One Way Clutch Assembly For Chemical Machinery

Type Nominal torque
[N.m]		 Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]		 Weight
[kg]
nmin nmax d
[H7]		 D
[h7]		 F D1 B C L n - M H bw x tw bn x tn
CKZF-A30100 340 780 6000 30 100 87 75 51 68 60.5 6 - M6 10 8 x 4.0 8 x 3.3 2.3
CKZF-A35110 380 740 6000 35 110 96 80 53 74 63 6 - M6 12 10 x 5.0 10 x 3.3 3.2
CKZF-A40125 550 720 5000 40 125 108 90 62 86 73 6 - M8 14 12 x 5.5 12 x 3.3 4.3
CKZF-A45130 860 665 5000 45 130 112 95 62 86 73 8 - M8 14 14 x 5.5 14 x 3.8 5.0
CKZF-A50150 1310 610 4000 50 150 132 110 73 94 86 8 - M8 14 14 x 5.5 14 x 3.8 7.5
CKZF-A55160 1480 600 4000 55 160 138 115 73 104 86 8 - M10 16 16 x 6.0 16 x 4.3 9.0
CKZF-A60170 1200 490 3200 60 170 150 125 91 114 105 10 - M10 16 18 x 7.0 18 x 4.4 12.7
CKZF-A70190 3520 480 3200 70 190 165 140 108 134 124 10 - M10 16 20 x 7.5 20 x 4.9 14.5
CKZF-A80210 4100 450 2400 80 210 185 160 106 144 124 10 - M10 16 22 x 9.0 22 x 5.4 19.0
CKZF-A90230 6046 420 2400 90 230 206 180 114 158 143 10 - M12 20 22 x 9.0 25 x 5.4 29.5
CKZF-A100270 10450 455 2000 100 270 240 210 121 182 153 10 - M16 24 28 x 10 28 x 6.4 42.5
CKZF-A130310 10870 415 2000 130 310 278 240 169 212 194 12 - M16 24 32 x 11 32 x 7.4 70.0
