670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry
670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry
670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry
670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry
Specifications
Brand Name :
CHAOYUE
Model Number :
B200
Place of Origin :
Shaanxi, China
MOQ :
10 PCs
Price :
USD 20.00 - 60.00 / pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
Inner Diameter :
16.510 - 79.356 mm
Outer Diameter :
40 - 125 mm
Thickness :
25 - 42 mm
Torque :
33 - 1188 N.m
Weight :
0.23 - 2.40 kg
Description

B200 One Way Sprag Overrunning Clutch For Industry Machinery

Type B200 is a sprag type freewheel non-bearing supported and non-inner race clutch. Nominal diameter is a standard ball bearing dimension. Bearings are required to support axial and radial loads. Units are delivered grease lubricated.

The outer race is keyed to the housing, because sprag contact to shaft directly, the shaft must have the hardness HRC 56 - 60 and tolerance h7.

This series extensive used in machinery system of conveyor, hosting, packaging, printing papermaking corrugated and food machinery etc.

Mounting Example

670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry

670N.M 1020r/Min Sprag Overrunning Clutch , Freewheel Clutch Bearing For Industry

TYPE Nominal Torque
[N.m]

Overrunning Limiting Speed

[r / min]

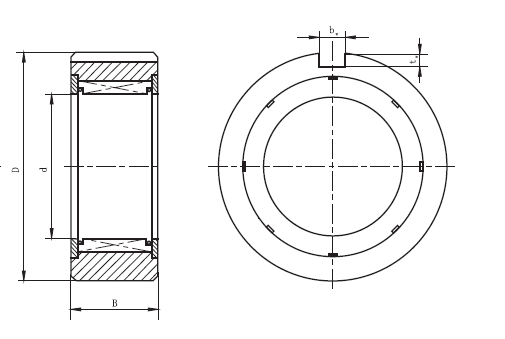

 Dimension in Contour [mm] Bearing
GB/T276-1994		 Weight
[kg]
Inner Race Outer Race D [h7] d [H7] B bw × tw
B203 33 2040 500 40 16.510 25 4 x 2.5 6203 0.23
B204 50 2040 500 47 18.796 25 5 x 3 6204 0.34
B205 84 1530 400 52 23.622 25 5 x 3 6205 0.45
B206 200 1530 350 62 32.766 28 7 x 4 6206 0.68
B207 318 1360 300 72 42.088 28 7 x 4 6207 0.80
B208 470 1360 200 80 46.761 32 10 x 4.5 6208 0.91
B209 470 1360 200 85 46.761 32 10 x 4.5 6209 0.95
B210 670 1020 200 90 56.109 32 10 x 4.5 6210 1.00
B211 670 1020 200 100 56.109 32 10 x 4.5 6211 1.40
B212 1050 1000 180 110 70.029 42 10 x 4.5 6212 1.80
B213 1050 1000 180 120 70.029 42 10 x 4.5 6213 2.30
B214 1188 860 180 125 79.356 42 12 x 4.5 6214 2.40
