100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing
Specifications
Brand Name :
CHAOYUE
Model Number :
CK-L
Place of Origin :
Shaanxi, China
MOQ :
1 pc
Price :
USD 40.00 - 95.00 / pc
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
Inner Diameter :
15 - 45 mm
Outer Diameter :
60 - 135 mm
Length :
70 - 112 mm
Torque :
86 - 1240 N.m
Weight :
0.58 - 6.00 kg
Description

CK-L One Way Overrunning Clutch bearing Coupling For Printing Machinery

Type CK-L is a sprag type freewheels, bearing supported. It mainly used in occasion of lower speed and insufficient space. It needs seal and grease when used.

This series can connect with gears, sprocket. But can not bear flash and use as coupling. Please specify inner race direction of rotation seen from the A side.

This series extensive used in mechanism of packing, printing, weaving and so on, to realise overrunning, indexing and backstop.

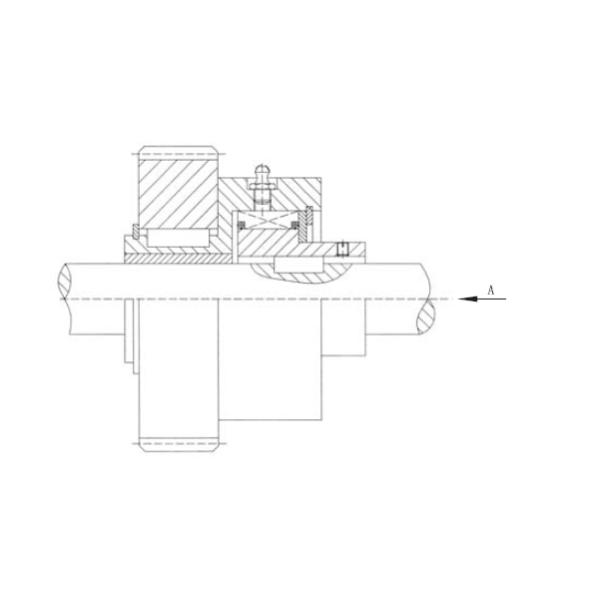

Mounting Example

100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing

100mm Length 900N.M Sprag Clutch Bearing , Backstop Clutch Bearing

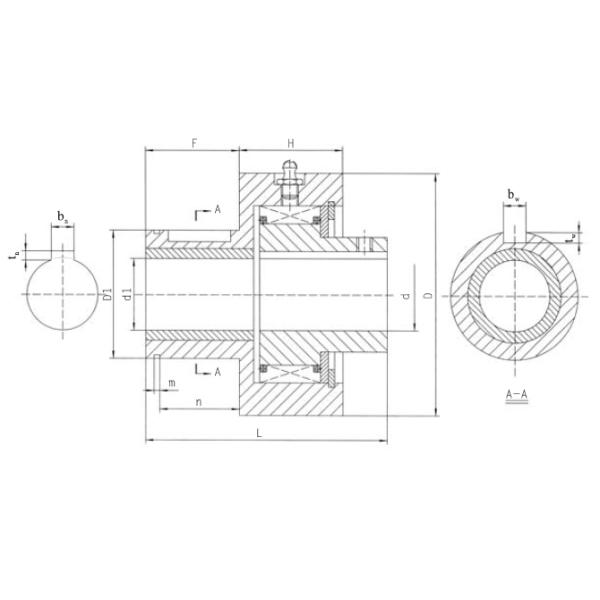

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 Dimension in Coutour [mm] Weight
Inner Race Outer Race d
[H7]		 d1
[F8]		 D D1
[H7]		 F H L m n bw x tw bn x tn
CK-L1560 86 1260 765 15 15 60 32 25 32 70 1.3 21 6 x 3.5 4 x 1.5 0.58
CK-L2072 225 1050 680 20 20 72 38 33 38 82 1.7 29 6 x 3.5 6 x 2.8 1.17
CK-L2585 330 840 552 25 25 85 45 33 40 85 1.7 28 14 x 4.5 8 x 3.3 1.67
CK-L3085 330 840 550 30 30 85 48 35 35 85 1.7 31 8 x 4 8 x 3.3 1.78
CK-L3095 490 700 340 30 30 95 60 37 41 92 2.2 30 8 x 4 8 x 3.3 2.50
CK-L40115 900 560 255 40 40 115 65 37 50 100 2.7 30 12 x 5 12 x 3.3 3.60
CK-L45135 1240 490 255 45 45 135 75 41 54 112 2.7 35 14 x 5.5 14 x 3.8 6.00
