3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque
3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque
3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque
3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque
Specifications
Brand Name :
CHAOYUE
Model Number :
CK-X
Place of Origin :
Shaanxi, China
MOQ :
50 PCs
Price :
USD 15.00 - 260.00 / pc
Payment Terms :
T/T
Supply Ability :
5000 pcs per month
Delivery Time :
1 - 3 weeks
Packaging Details :
Carton box or wooden case depends on the size of products
Inner Diameter :
22.22 - 123.34 mm
Outer Diameter :
38.88 - 140.00 mm
Torque :
50 - 3840 N.m
Thickness :
10 - 25.4 mm
Weight :
0.030 - 0.400 KG
Description

CK-X Sprag One Way Freewheel Sprag Overrunning Clutch Bearing

Type CK-X is a sprag make up of wedge, inside and outside retainer, corrugated spring and damping component. Compare with other type of clutch, the torque capacity is higher for a minimum space requirement, excellent in quality and resonable in price.

It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. Inner and outer races must both have a minimum plain wiht 'e'. Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Sufface hardness of the finished part should be HRC 60 to 62, for a depth of 1.2 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 0.8 μm. Maximum taper between races: 0.007 mm for 25 mm width.

This series extensive used in machinery system of packing, conveyor, hosting, printing, paper making, corrugated machine, food and so on.

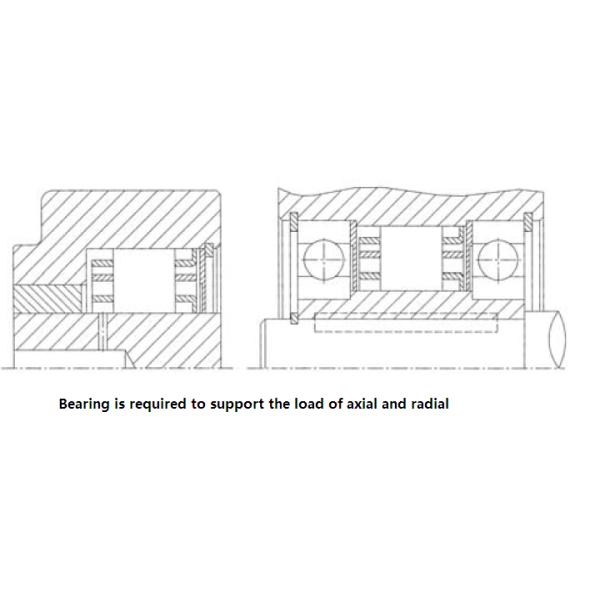

Mounting Example

3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque

3840N.M 140mm Thickness Sprag Overrunning Clutch High Torque

Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Weight
Inner Race Outer Race d
+0.008
-0.005		 D
+0.013
-0		 e D1 d1
CK-X2238 x 10.0 50 4300 2150 22.22 38.88 10.0 50 17 0.030
CK-X2744 x 13.5 95 3450 1700 27.76 44.42 13.5 58 21 0.055
CK-X3047 x 13.5 99 3150 1550 30.34 47.00 13.5 62 23 0.060
CK-X3148 x 13.5 127 3000 1500 31.75 48.41 13.5 63 24 0.060
CK-X3854 x 16.0 220 2500 1250 38.09 54.75 16.0 71 29 0.085
CK-X4157 x 13.5 179 2300 1150 41.27 57.93 13.5 75 32 0.090
CK-X4461 x 16.0 290 2150 1050 44.45 61.11 16.0 79 34 0.095
CK-X4966 x 13.5 245 1900 950 49.72 66.38 13.5 86 38 0.100
CK-X5471 x 13.5 336 1750 850 54.76 71.42 13.5 92 42 0.110
CK-X5471 x 16.0 420 1750 850 54.76 71.42 16.0 92 42 0.130
CK-X5471 x 21.0 615 1750 850 54.76 71.42 21.0 92 42 0.180
CK-X5471 x 25.4 792 1750 850 54.76 71.42 25.4 92 42 0.200
CK-X5774 x 16.0 483 1650 800 57.76 74.42 16.0 98 44 0.110
CK-X6380 x 21.0 645 1500 750 63.34 80.00 21.0 104 50 0.175
CK-X7288 x 13.5 540 1300 650 72.22 88.88 13.5 115 56 0.140
CK-X7288 x 16.0 1023 1300 650 72.22 88.88 16.0 115 56 0.185
CK-X7288 x 21.0 1023 1300 650 72.22 88.88 21.0 115 56 0.210
CK-X7996 x 25.4 1630 1200 600 79.70 96.36 25.4 124 61 0.280
CK-X83100 x 25.4 1645 1150 550 83.34 100.00 25.4 132 65 0.270
CK-X87103 x 16.0 1000 1100 500 57.30 103.96 16.0 134 67 0.165
CK-X103119 x 16.0 1290 900 450 103.23 119.89 16.0 155 80 0.205
CK-X123140 x 25.4 3840 750 400 123.34 140.00 25.4 184 96 0.400
