Z14 Spring Loaded Clamp Mechanism Keyless Locking Ring

Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

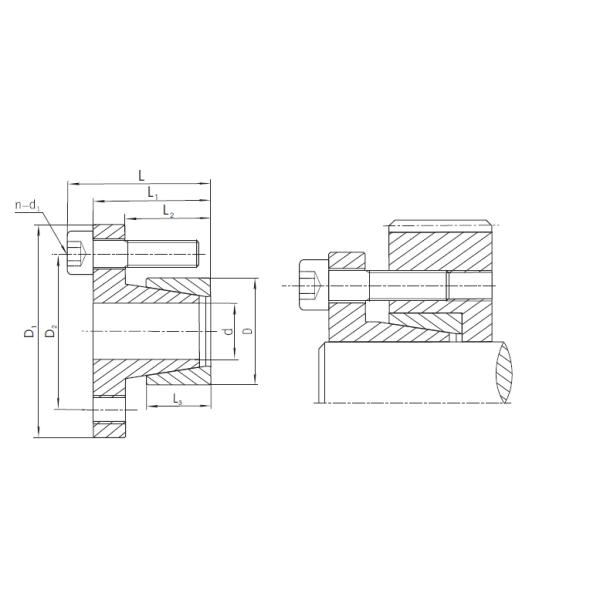

Mounting Example

Spring Loaded 1265N.M Torque 72mm OD Expansion Joint Sleeve

Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D D1 D2 L L1 L2 L3 d1 n Torque
[N·m]		 Axial Force
[kN]
14 25 42 33 30 26 20 16 M4 4 64 9.2 109 61 2.9 0.091
16 25 42 33 30 26 20 16 M4 4 74 9.2 95 61 2.9 0.082
18 25 42 33 30 26 20 16 M4 4 82 9.2 85 61 2.9 0.072
19 25 42 33 30 26 20 16 M4 4 87 9.2 80 61 2.9 0.068
20 30 50 39 31 26 20 16 M5 4 150 15 124 82 6 0.113
22 30 50 39 31 26 20 16 M5 4 165 15 113 82 6 0.11
24 30 50 39 31 26 20 16 M5 4 180 15 104 82 6 0.088
25 36 55 45 31 26 20 16 M5 4 187 15 100 69 6 0.144
28 36 55 45 31 26 20 16 M5 4 210 15 89 69 6 0.121
30 36 55 45 31 26 20 16 M5 4 225 15 83 69 6 0.105
32 42 62 51 33 28 20 16 M5 4 240 15 77 59 6 0.2
35 42 62 51 33 28 20 16 M5 4 260 15 71 59 6 0.173
36 42 62 51 33 28 20 16 M5 4 270 15 69 59 6 0.162
38 44 66 54 34 28 20 16 M6 4 400 21.2 93 80 10 0.182
40 48 70 58 34 28 20 16 M6 4 425 21.2 88 73 10 0.223
42 48 70 58 34 28 20 16 M6 4 446 21.2 83 73 10 0.191
45 55 82 67 43 35 25 20 M8 4 875 38.9 115 94 25 0.4
48 55 82 67 43 35 25 20 M8 4 935 38.9 107 94 25 0.35
50 62 89 74 43 35 25 20 M8 4 974 38.9 103 83 25 0.5
55 62 89 74 43 35 25 20 M8 4 1070 38.9 94 83 25 0.41
60 72 99 84 43 35 25 20 M8 4 1165 38.9 86 71 25 0.58
65 72 99 84 43 35 25 20 M8 4 1265 38.9 79 71 25 0.46
