High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple
Specifications
Brand Name :
FFTC
Certification :
ISO9001:2008
Place of Origin :
YIXING, CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
MoneyGram, T/T
Supply Ability :
1000000/year
Delivery Time :
3 - 4 weeks
Packaging Details :
carton and wooden crate
Colour :
White
Material :
Alumina Zirconia
Raw material :
Alumina Ceramic
Bulk density :
3.65
Water Absorption :
0%
Working temperature :
1400℃-1650℃
Application :
Industrial Ceramic
Package :
Wooden Box
Description

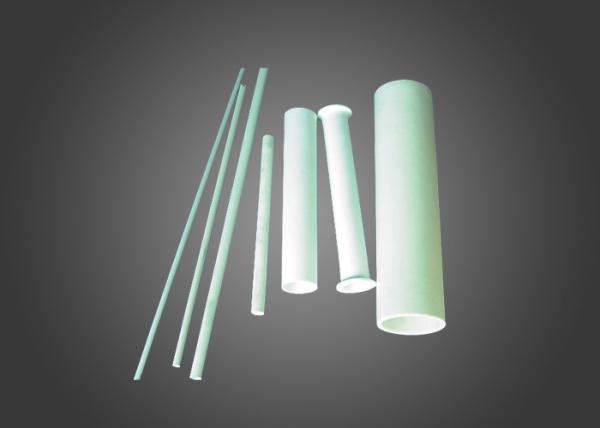

Furnace thermocouple high alumina ceramic tubes for furnace thermocouple

Product Description

Name Ceramic Tube
Size Customerized
Advantage High Strength;High Hardness;Insulation;High Temperature Resistance;Oxidation Resistance;Corrosion Resistance;Abrasion Resistance......
Application

Mechanical Seals;Electronics;Instrumentation;Sensor;

Transport;Communication;Other occasions areas......

95%/99%/99.7% AI203 Ceramic Material Parameters

Item Test Condition 95% AI203 99% AI203 99.7% AI203

Bulk Density (g/cm3) >3.6 3.89 3.96

Maximum Use Temp(°C) 1450 1600 1650

Water Absorption(%} 0 0 0

ROHS Hardness >85 >89 >89

Flexural Strength MPa(psiX l〇3) 20°C 358(52) 550 550

Compressive Strength MPa(psi X l〇3) 20°C 2068(300) 2600(377) 2600(377)

Fracture Toughness Mpa m’/j K(lc) 4-5 5.6 6

Thermal Expansion

Coefficient{lXi〇-6/°C)

25-1000〇 C 7.6 7.9 8.2

Thermal Conductivity

Coefficient(W/m° K}

206C 16 30.0 30.4

Thermal Shock Resistance(°C) ATc 250 200 200

Dielectricity Constant 1MHz.25〇 C 9 9.7 9.7

Dielectric Strength (ac-kV/mm)(acV/mil)

8.3(210) 8.7(220) 8.7(220)

Volume Resistivity(ohm-cm) 100°C >1013 >1014 >1014

High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple

High Alumina Ceramic Parts , Ceramic Machining Tools For Furnace Thermocouple

Advantages

1. High temperature, Max working temperature: 1700C.

2. Excellent wear and abrasion resistance.

3. Good chemical corrosion resistance under high temperature.

4. High dielectric properties.

5. High oxidation resistance.

FAQ

Q: How long is the delivery time usually?

A: Product delivery is subject to order quantity and processing requirements, and different product delivery times are inconsistent. Generally speaking, the delivery time of 1-2 common product samples is about 35 days.

Q: Is it possible to provide samples?

A: We can supply 1-2 samples, but we do not bear the shipping cost of the samples.

Q: Which payment methods are supported?

A: T/T; credit card. Currently our company supports these two payment methods.

Q: What is the shipping date? How long can I ship?

A1: Shipped within 72 hours after the balance is settled
A2: After the production of the product is completed and passed the internal inspection of the company, we will send the finished product image to the customer for confirmation. After the balance is settled, all the products will be sent to the customer's designated delivery location.
