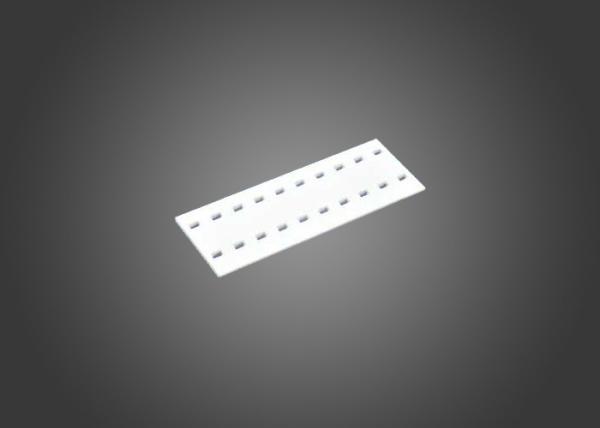

White Talc Porcelain High Tech Ceramic Plates , Industrial Machinable Glass Ceramic
White Talc Porcelain High Tech Ceramic Plates , Industrial Machinable Glass Ceramic
Specifications
Brand Name :
FFTC
Certification :
ISO9001:2008
Place of Origin :
YIXING, CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
MoneyGram, T/T
Supply Ability :
1000000/year
Delivery Time :
3 - 4 weeks
Packaging Details :
carton and wooden crate
Color :
White
Feature :
Insulating device ceramic
Micro structure :
Polycrystal
Characteristic :
High frequency insulating ceramic
Water absorption :
0%
Density :
2.8g/cm2
Hardness :
800HV
Description

Provide white talc porcelain ceramic plates Industrial ceramics

About us

1. We are one of the leading manufacturer specialized in designing and manufacturing industrial ceramics with experience of more than 10 years in China
2. Manufacturing according to the ISO9001:2008 quality control system guidelines.
3. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

4. Workers are locals in china, low production cost.

White Talc Porcelain High Tech Ceramic Plates , Industrial Machinable Glass Ceramic

Product Description

With the rapid development of science and technology, special Industrial ceramics are increasingly highlighting its importance, playing an increasingly important role in the fields of electronics, lighting, machinery, textiles, hardware, electric heating, and aerospace.

Special ceramics have high strength, high temperature resistance, corrosion resistance, wear resistance, high insulation and other properties unmatched by metals and plastics. With the development of nano-ceramic materials, various excellent properties of special ceramics will be fully exerted, thus playing a greater role in more fields.

Steatite is an inorganic material based on natural raw materials consisting predominantly of magnesium silicate. It is marked by a high heat resistance, resistance to leakage current and dielectric strength, which is recommended as an insulation material in electrical engineering.

Item Test Condition Unit&Symbol Steatite Ceramic / C221
The main chemical ingredient Steatite
Bulk Density g/cm3 ≥2.6
Maximum Use Temperature ≥1000℃
Water absorption % 0
Rohs Hardness HRA ≥75
Compressive Strength 20° C MPa ≥800
Fracture Toughness Mpa ≥120
Dielectricity constant 1MHz.20℃ ετ 5.5
Dielectric strength KV/mm 18
Volume Resistivity 20℃ Ω.cm20℃ > 1012

Features

1, Material:Alumina, Zirconia, Steatite, Silicon carbide,Silicon nitride, etc

2, Surface: polising or mirrow surface

3, Good wear resistance, high lubrication and low resistance

4, Insulation, corrosion resistance

5, Rigidity: 84_86HRA

6, Density: 3.6-3.7g/cubic centimeter, and the frictional times is 300,000 to 500,000

7, Good insulation performance and high temperature resistance

8, The thickness tolerance is less than 0.02mm, the diamter tolerance is less than 0.02mm
