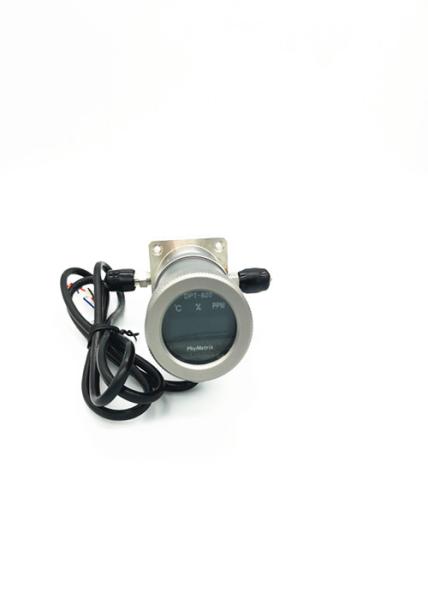

DPT-820 Moisture Transmitter Range -110℃ Dp To +20℃ Dp Measures Moisture Content
DPT-820 Moisture Transmitter Range -110℃ Dp To +20℃ Dp Measures Moisture Content
DPT-820 Moisture Transmitter Range -110℃ Dp To +20℃ Dp Measures Moisture Content
DPT-820 Moisture Transmitter Range -110℃ Dp To +20℃ Dp Measures Moisture Content
Specifications
Brand Name :
Phymetrix
Model Number :
DPT-820
Place of Origin :
USA
MOQ :
1
Payment Terms :
T/T
Measures :
Measures Moisture Content
Output :
4-20mA output
Range :
-110℃ dp to +20℃ dp
Display :
DP (℃), PPMV, RH %
Power :
DC12V - DC30V
Accuracy :
2 ℃
Description

Measures Moisture Content in Gasses , Dew Point Transmitter , Range -110℃ dp to +20℃ dp

The DPT-820 measures moisture content in gasses in the range -110℃ dp to +20℃ dp and provide a 4-20mA output linear to the measurement units chosen.The factory default is 4mA=-110 ℃and 20mA= +20℃.The defaults can bu modified in value and units (available units:℃ dewpoint, ppmV,RH%).The DPT-820 is a Loop-Powered Blind (three wire)Transmitter;it has display self and can consuming power in the range of 4mA to 20mA

Specifications

1 Display: DP (℃), PPMV, RH %, either one

2. Power supply: DC12V - DC30V

3. Output: 4-20 mA

4. Sensor : Resistance capacity

5. Alarm, colors: Red: High alarm Pink: low alarm White: test in range

6. Range: 110 ℃ ~ + 20 ℃

7. Accuracy:2 ℃(temperature corrected)

8. Repeatability: 0.8 ℃

9. Response time: T95 = 3 min

10. Sampe flow: > 1LPM

11. Dimensions include sample chamber: 4.331″*2.362″*4.760″(L*W*H) (110 mm* 60mm * 120.9 mm)

12. Weight:Transmitter$sensor:14.11 oz.(0.4Kg) Sample chamber:29.98 oz.(0.85Kg)

13. Explosion-proof grade: IP67 (Designed)

14. Inlet&Outlet: 1/8 NPT 316L-SS

15. Cable: 0.2 *5

16. RS485 output: Modbus provide PC software (optional)
