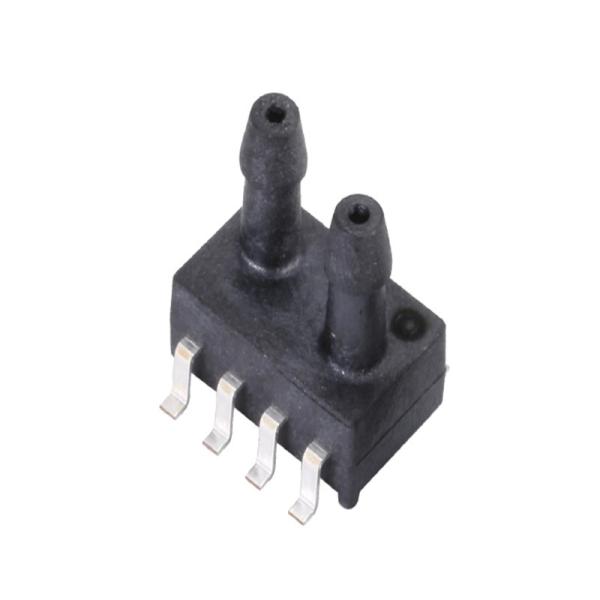

XGZP6897A Filter Air Differential Pressure Sensor 200kPa 5.5 V
XGZP6897A Filter Air Differential Pressure Sensor 200kPa 5.5 V
Specifications
Brand Name :
CFsensor
Model Number :
XGZP6897A
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1501/pcs/pre
Delivery Time :
3-5work days
Packaging Details :
Tubes of
Supply voltage :
5.5 V
Operating temperature :
-30 100 ℃
Operating current :
@25℃ 1700 uA
Filter capacitance :
100 nF PSRR 60 dB
Output current load :
5 mA
Description

Product Description:

XGZP6897A - 100 kPa ~ 2.5 kPa... 200kPa Pressure Sensor Module Is Used For Non-corrosive Gases

Features:

XGZP6897A pressure module is a pressure sensor suitable for differential pressure measurement, its core part is a MEMS technology processing

The silicon piezoresistive pressure sensitive chip, the positive and negative sides of the pressure sensitive chip through the pressure nozzle to feel different pressure, so as to form a pressure difference, produced

A voltage signal proportional to the pressure difference. The built-in circuit chip digitally compensates the offset, sensitivity, temperature drift and nonlinearity of the sensor to provide

The voltage is used as a reference to generate a calibrated and temperature compensated standard voltage signal.

XGZP6897A pressure module size is small, easy to install, can be calibrated according to user requirements output signal, widely used in medical care, industrial testing,

Sports and fitness equipment and other fields.

 Performance index

Power supply :(5±0.25) V DC or (3.3±0.165) V DC

Reference temperature: 25℃

Application field

· Ventilator, CPAP, spirometer, gas flow measurement, sleep apnea treatment and other medical fields

· Air flow detection, heating, ventilation and air conditioning, pneumatic equipment, flowmeter, liquid level detection, pressure switch and other industrial fields

· Bioscience, small household appliances, consumer electronics, sports and fitness equipment, fire fighting equipment, Internet of Things and other fields

Specifications:

Item value unit
output signal 0.5 ~ 4.5 (5V power supply) V
Accuracy ±1.0, ±0.5, ± 2.5% span
Long-term stability (1 year) 0.5% span
Overload pressure 2× range Rated
Compensation temperature 0 ~ 60 ℃

XGZP6897A Filter Air Differential Pressure Sensor 200kPa 5.5 VXGZP6897A Filter Air Differential Pressure Sensor 200kPa 5.5 V
