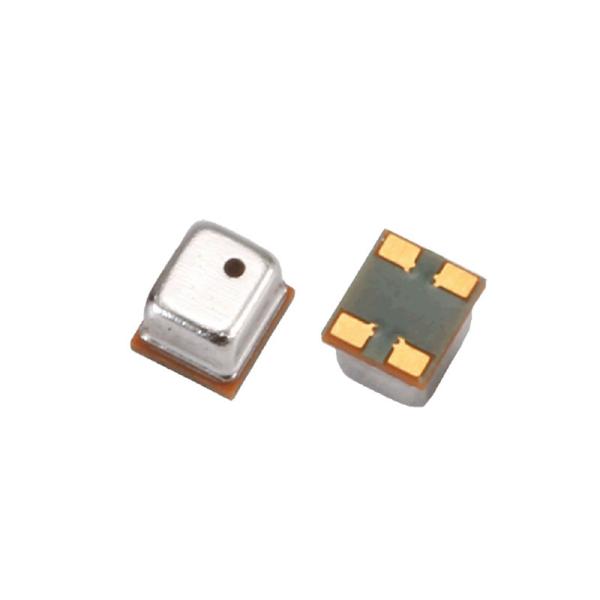

XGZP131 Gauge Electronic Pressure Sensor 15V DC 2000 kPa For Pressure Instruments
XGZP131 Gauge Electronic Pressure Sensor 15V DC 2000 kPa For Pressure Instruments
XGZP131 Gauge Electronic Pressure Sensor 15V DC 2000 kPa For Pressure Instruments
XGZP131 Gauge Electronic Pressure Sensor 15V DC 2000 kPa For Pressure Instruments
Specifications
Brand Name :
CFsensor
Model Number :
XGZP131
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1501/pcs/pre
Delivery Time :
3-5work days
Packaging Details :
Tubes of
Pressure sensitive chip :
Silicon material
Lead :
gold wire
Packaging case :
PCB substrate and metal cover plate
Pin :
gold plated
Net weight :
about 0.1g
Description

Product Description:

XGZP131 Pressure Sensors Are Used For Pressure Instruments

Features:

Benchmark conditions

(4) Measurement medium: air

 medium temperature :(25±1) ℃

(4) ambient temperature :(25±1) ℃

 Vibration: 0.1g(1m/ S2)Max

(3) humidity :(50%±10%) RH

 power supply :(5±0.005) V DC

The basic parameters

Parameter Minimum Typical value Maximum value unit

Standard range 100, 700, 2000 kPa

Constant voltage supply 5 15 V

Constant current supply 1 3 mA

Operating temperature -30 +125 ℃

Storage temperature -40 +150 ℃

Bridge arm resistance 4, 5, 6 kω

Zero output: -30 30 mV

Full scale output: 60 120 mV

Bridge resistance temperature error 1800 2400 3000 PPM /℃

Zero temperature error -0.06 ±0.03 0.06 %FS/℃

Full scale temperature error -0.25-0.21-0.17%fs /℃ Constant voltage supply

Nonlinearity -0.3 ±0.15 0.3%Fs

Hysteresis -0.3 ±0.15 0.3%fs

Specifications:

Power supply ≤15V DC or ≤3.0mA DC
Input impedance 4K to 6 kω
Output impedance 4K to 6kω
Insulation resistance 100mω,100VDC
Allowed overload 1.5 times full scale
End (4) Bursting pressure ≥2 times full scale
