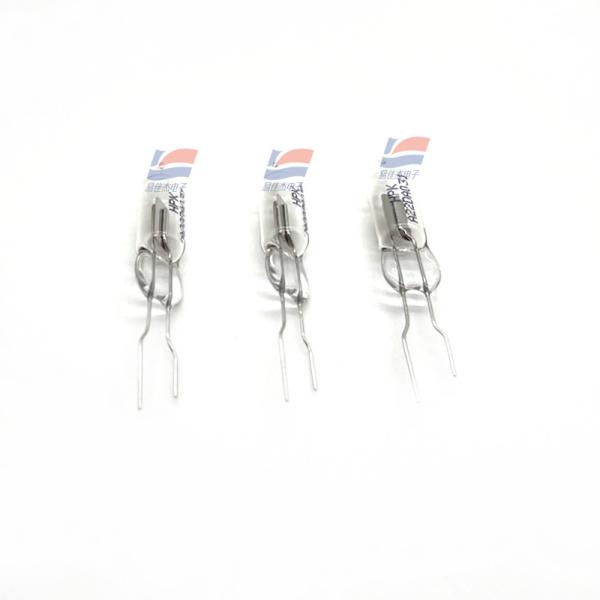

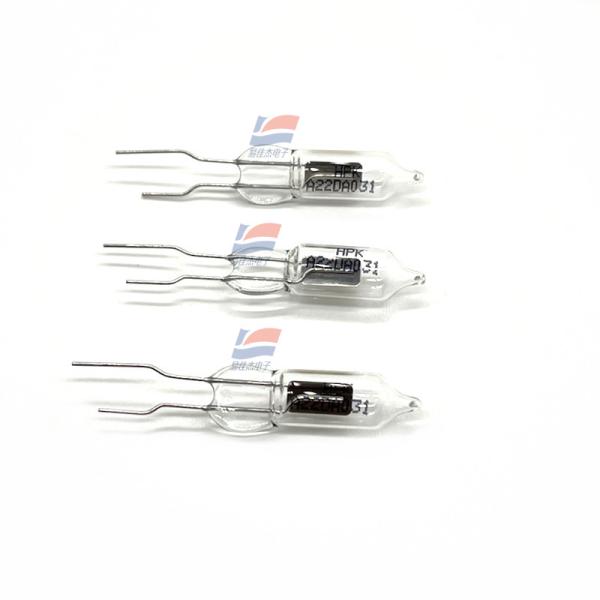

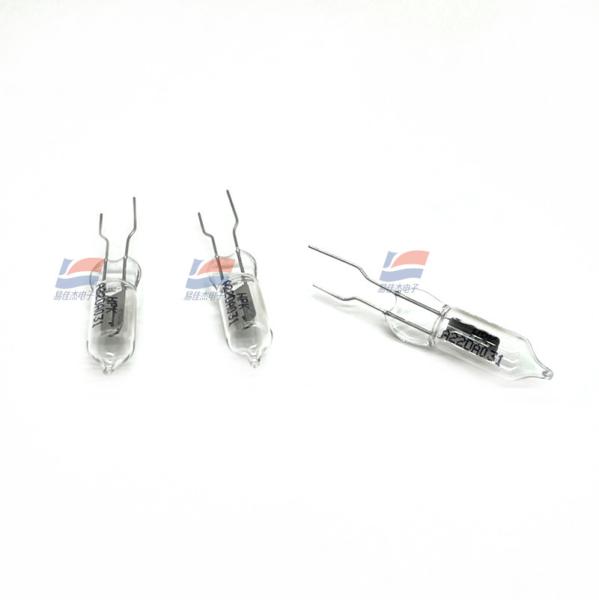

R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
Specifications
Brand Name :
Hamamatsu
Model Number :
R9454
Place of Origin :
Japan
MOQ :
5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1501/pcs/pre
Delivery Time :
3-5work days
Packaging Details :
In a box
Spectral response (short) :
185 nm
Spectral response (length) :
260 nm
Electrode material :
Ni
weight of :
1.5 g
Supply voltage (DC) :
500 V
Average discharge current :
1 mA
Description

Product Description:

R9454 Flame Detector Ultraviolet Light Incident From The Side Of The Tube (UVTRON)

Features:

R9454 is a side-window flame detector with a similar profile to the R2868 UVTRON (UV light coming from the side of the tube body). It also has high sensitivity and wide field of view (directionality).

Maximum background noise: 10 min-1

The average life is 10000 h

[Recommended operating parameters] Supply voltage (DC) 400±25 V

[Recommended operating parameters] Average discharge current 0.3 mA

[Recommended Parameter] Quench time Minimum value: 2 ms

Specifications:

Peak current 30 mA
Operating ambient temperature -20 to +60 ° C
Discharge start voltage (DC) 360 V
Discharge maintenance voltage (DC) 300 V
Typical sensitivity of 4000 min-1

R9454 Infrared Photoelectric Sensor UVTRON , Flame Photometric Detector
