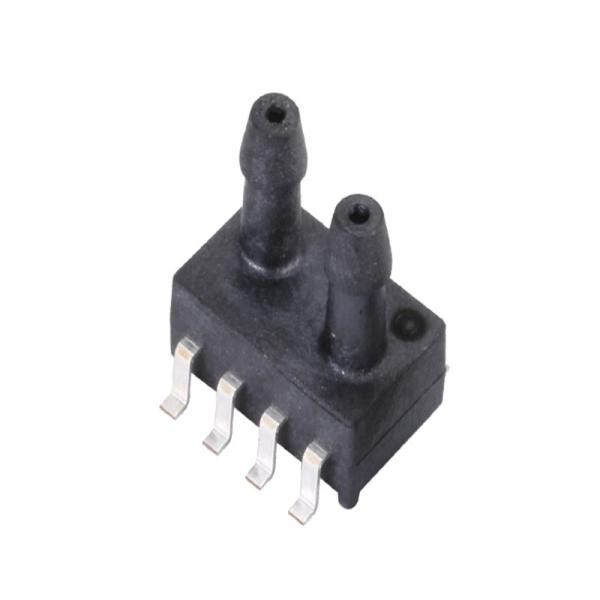

XGZP6891D - 10 Kpa... 0 ~ 1 Kpa... 10KPa Pressure Sensor For Medical Devices
XGZP6891D - 10 Kpa... 0 ~ 1 Kpa... 10KPa Pressure Sensor For Medical Devices
Specifications
Brand Name :
CFsensor
Model Number :
XGZP6891D
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1501/pcs/pre
Delivery Time :
3-5work days
Packaging Details :
Tubes of
Measurement range :
10kPa... 0 ~ 1 kpa... 10kPa
Pressure type :
differential pressure and gauge pressure type
Power supply voltage :
2.5V ~ 5.5V
Current consumption :
5uA(one measurement)
Sleep current :
< 100 na (25 ° C)
Description

Product Description:

XGZP6891D - 10 Kpa... 0 ~ 1 Kpa... 10KPa Pressure Sensor For Medical Devices

Features:

XGZP6891D pressure sensor adopts SOIC-16 package form, the design of barb tube can ensure the sealing of the installation. The pressure inside the package

Force sensor and signal conditioning chip, digital compensation for sensor offset, sensitivity, temperature drift and nonlinearity. It uses a 24-bit ADC and

Conditioning chip built-in temperature sensor, can output high precision pressure and temperature value. At the same time provide IIC communication protocol interface, anti-interference ability.

All measurements are fully calibrated and temperature compensated.

XGZP6891D pressure sensor has fast response, high precision, good linearity and long-term stability.

XGZP6891D pressure sensor has high integration, good reliability, easy installation, easy to SMT, widely used in medical electronics, automotive electronics, transportation

Exercise equipment and other fields.

Application field

· Ventilators, spirometers, negative pressure wound treatment, blood pressure monitoring, sleep apnea treatment and other medical fields

· Air flow detection, heating, ventilation and air conditioning, pneumatic equipment, pressure switches and other industrial fields

· Bioscience, small household appliances, consumer electronics, sports and fitness equipment, fire fighting equipment, Internet of things and other fields

· Gas flow meter, gas emission, variable air volume regulation and other fields

Specifications:

Temperature accuracy ±0.5℃@25℃
Application Suitable for non-corrosive gas
Features I2C signal output, wide temperature compensation
Accuracy + / - 2.5% Span
Response time 2.5ms@OSR_P=1024X Ms

XGZP6891D - 10 Kpa... 0 ~ 1 Kpa... 10KPa Pressure Sensor For Medical Devices
