TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
Specifications
Brand Name :
Figaro
Model Number :
TGS826
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Month
Delivery Time :
3-5Workingdays
Packaging Details :
Standard Box
Product Type :
Ammonia Sensor
Measuring range :
30-300ppm
Sensitivity (resistance ratio) :
0.4-0.7
Circuit voltage :
24VDC
Description

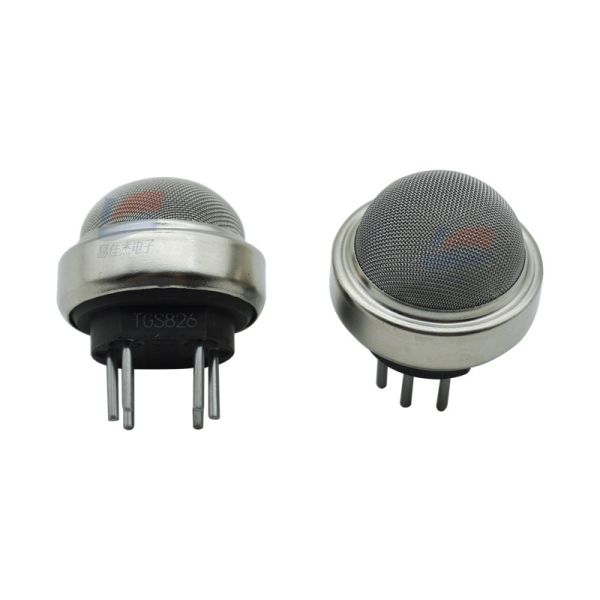

TGS826 Ammonia Sensor NH3 Low Conductivity Resistance To Environment

*The sensitive element of the sensor is composed of tin dioxide (SnO2) semiconductor, which has very low conductivity in clean air. When the detected gas exists in the air, the higher the concentration of the gas, the higher the conductivity of the sensor.

*Using a simple circuit, the change in conductivity can be converted into a signal output corresponding to the gas concentration.

*TGS826 has high sensitivity to ammonia gas and can detect ammonia gas with a concentration as low as 30ppm in the air. It is an ideal refrigerant critical safety detection sensor, and can also be used for ammonia leakage detection in the agricultural field.

Applications Refrigerator gas detection, cold storage ammonia leakage detection, ventilation control in agriculture and aquaculture, etc.
Characteristic

High sensitivity to ammonia gas;

The later circuit is simple;

Ceramic substrate, strong environmental resistance;

Very short response time to low concentrations of ammonia

The main parameters:

*Measuring range: 30-300ppm
*Sensitivity (resistance ratio): 0.4-0.7
*Circuit Voltage: 24VDC
*Heater voltage: 5V±0.2V(AC/DC)

TGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To EnvironmentTGS826 NH3 Ammonia Gas Detector Sensor Low Conductivity Resistance To Environment
