ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
Specifications
Brand Name :
Winsen
Model Number :
ME4-CO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5Workingdays
Packaging Details :
Standard Box
Detection :
Gas carbon monoxide (CO)
Range :
0-1000ppm
Maximum measurement limit :
1500ppm
Sensitivity :
(0.080±0.02)uA/ppm
Description

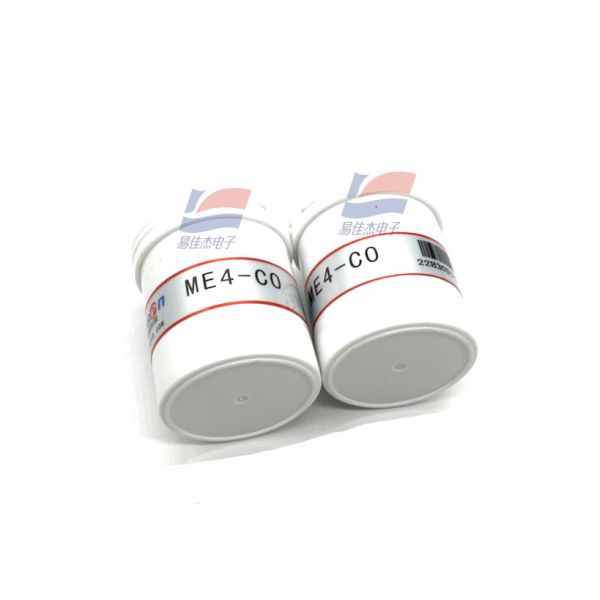

ME4-CO Carbon Monoxide Sensor CO Redox reactions

ME4-CO sensor is a constant potential electrolytic CO sensor. CO and O2 undergo corresponding redox reactions on the working electrode and the counter electrode, respectively, and release charges to form a current. The generated current is proportional to the CO concentration. The CO concentration can be determined by testing the current.

Main application
Widely suitable for carbon monoxide detection in petroleum and petrochemical, metallurgy, mining and other industrial places and environmental protection

Datasheet:

Resolution 1ppm
Response time (T90) ≤25s
Bias 0mV
Load resistance (recommended) 10Ω
Stability (/month) <5%
Zero drift (-20℃-40℃) 9ppm
Temperature range -20℃~50℃
Humidity range 15﹪~90﹪RH
Pressure range Standard atmospheric pressure ±10%
Detection life 2 years (in air)

ME4-CO Carbon Monoxide Sensor 1500ppm 10Ω Redox Reactions
