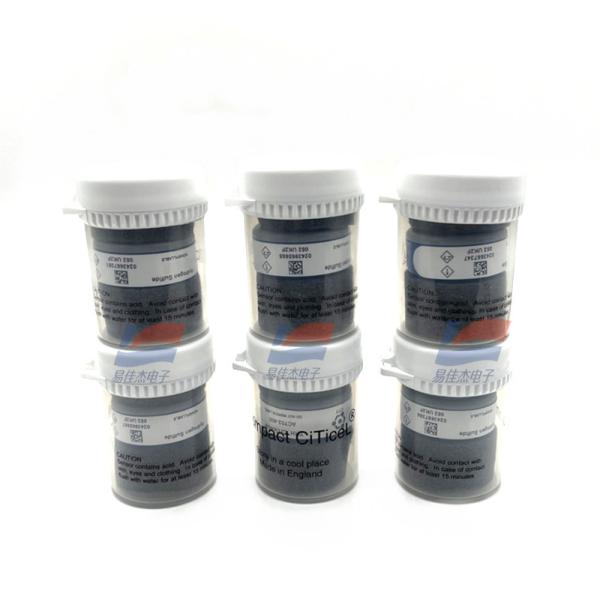

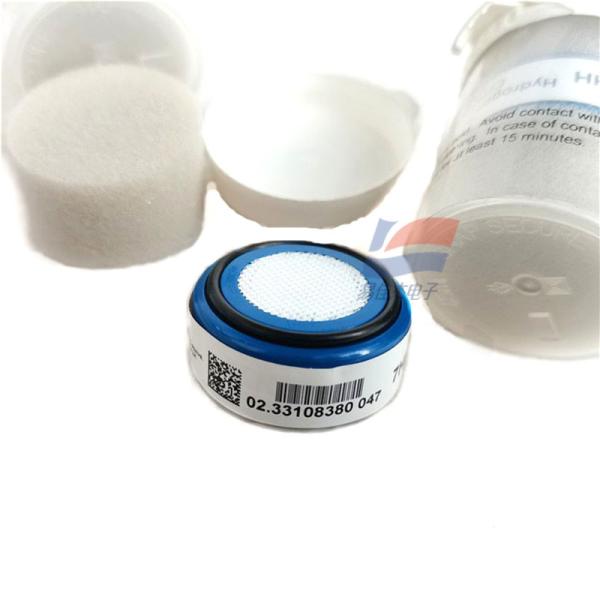

7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
Specifications
Model Number :
7HH
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 work days
Maximum Overload :
500ppm
Expected Operating Life :
Two years in air
Output Signal :
1.70 ± 0.30 μA/ppm
Resolution :
0.1ppm
Temperature Range :
-40°C to +50°C
Pressure Range :
Pressure Range
Description

7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector

IMPORTANT NOTE:

Connection should be made
via PCB sockets only. Soldering to the pins will
render your warranty void.

Cross-sensitivity Data:

CiTiceLs may exhibit a response to certain gases in a sample other than the target gas. 7HH CiTiceLs have been
tested with a number of commonly cross-interfering gases and the results are given below. The table shows the typical
response to be expected from a sensor when exposed to a given test gas concentration (relevant to safety, e.g. TLV
levels).

Relative Humidity Range 15 to 90% non-condensing
Typical Baseline Range (pure air) -0.2 to +0.4ppm equivalent
Maximum Zero Shift (+20°C to +40°C) 0.1ppm equivalent
Long Term Output Drift <2% signal loss/month
Recommended Load Resistor 10Ω
Bias Voltage Not required
Repeatability 1% of signal
Output Linearity Linear

7HH Electrochemistry Hydrogen Sulphide 0-50ppm For Gas Analyzers Hydrogen Sulfide Detector
