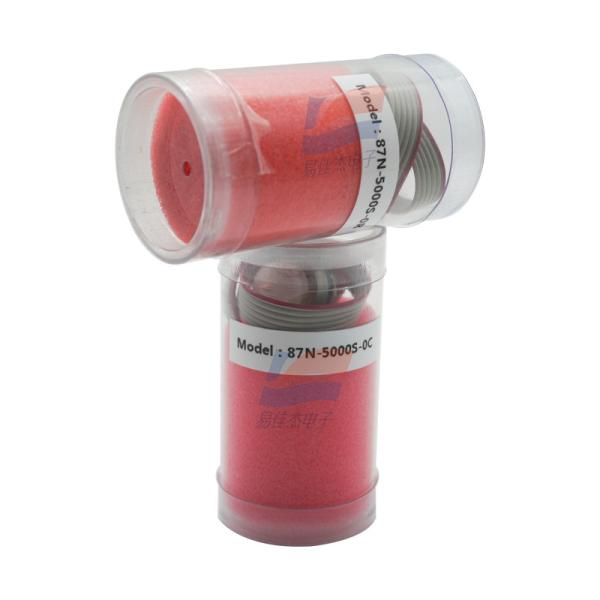

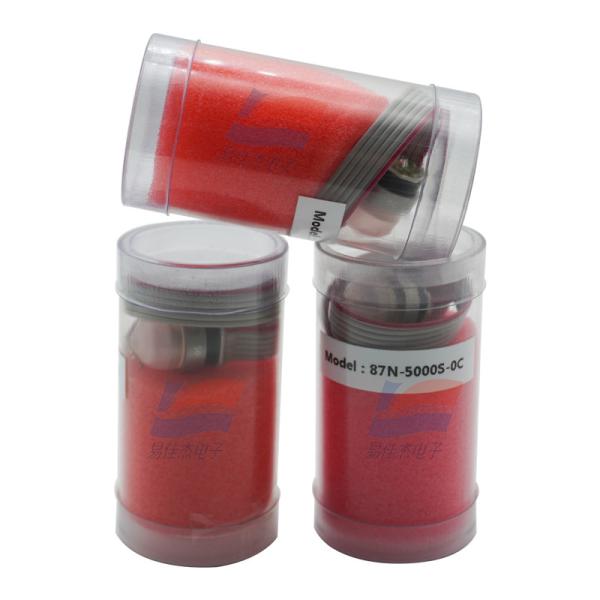

87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
Specifications
Brand Name :
TE
Model Number :
87N-5000S-OC
Place of Origin :
USA
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Span :
75-150mV
Span (2psi version) :
30-60mV
Zero Pressure Output :
-2 to 2mV
Pressure Non Linearity :
-0.1(±0.05)
Pressure Hysteresis :
-0.05（±0.01）
Description

87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package

SPECIFICATIONS
· PC Board Mountable Pressure Sensor
· 0-100 mV Output
· Current Excitation
· Gage and Differential
· Temperature Compensated


The 23 and 33 are temperature compensated piezoresistive silicon pressure sensors packaged in a TO-8
configuration. It provides excellent performance and long-term stability.
Gage and absolute pressure ranges from 0-2 to 0-250 psi are available. Integral temperature compensation is provided
over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize
pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity
interchangeability of ±1%. Please refer to the 23 and 33 1 psi datasheets for low pressure applications.

Supply Current 1.2-2.0mA
Response Time (10% to 90%) 1.0ms
Output Noise (10Hz to 1kHz) 1.0
Insulation Resistance (50 Vdc) 50mΩ
Long Term Stability ±0.2%span

87N-5000S-OC PC Board Mountable Pressure Sensor TO-8 Package
