4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
4HSC Hydrogen Sulfide H2S Gas Sensor TBC Operating Principle 3-electrode electrochemical Sensitivity* 0.7 ± 0.15 μA/ppm
Specifications
Model Number :
4HSC
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 work days
Operating Principle :
3-electrode electrochemical
Measurement Range :
0-100 ppm
Maximum Overload :
500 ppm
Sensitivity* :
0.7 ± 0.15 μA/ppm
Response Time (T90)* :
20 Seconds at 20OC
Baseline Offset (clean air)* :
< ±0.5 ppm equivalent
Zero Shift (-40°C to +50°C)* :
< ±0.4 ppm equivalent
Description

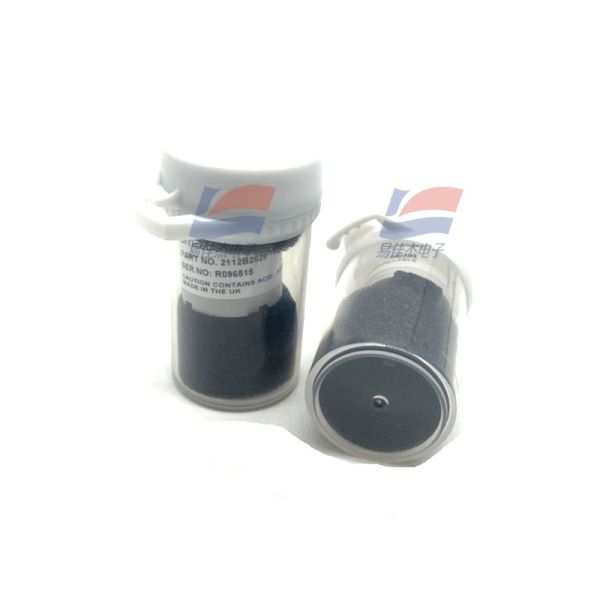

4HSC Hydrogen Sulfide (H2S) Gas Sensor Part Number: TBC Improved performance variability

Key Features & Benefits:

• Industry leading reliability
• Improved performance variability

Poisoning:
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is
important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into
instruments, and operation.
When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is
fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.

Repeatability * < ±5%
Linearity* Linear <±5%
Bias Voltage Not required
Housing Material Noryl 110
Weight 5 g (approx.)
Maximum at 500ppm 0.5 mA
Long Term Output Drift* < 20% per annum
Recommended Storage Temp 10°C to +30°C
