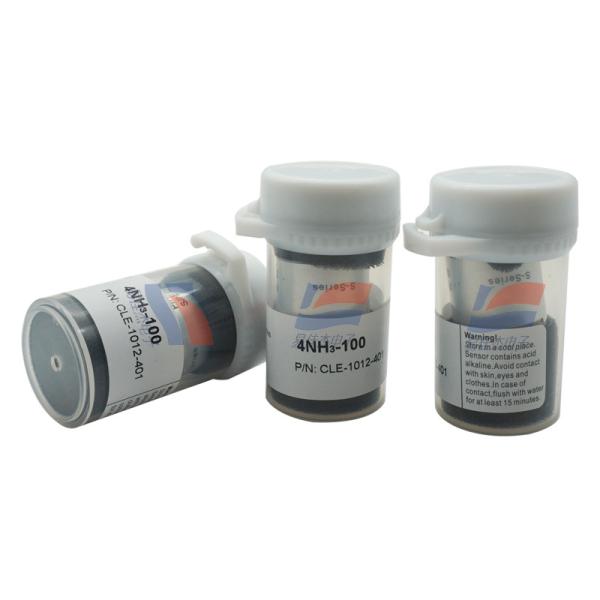

4NH3-100 Zero Bias Ammonia Sensor 0-100 Ppm CLE-1012-401
4NH3-100 Zero Bias Ammonia Sensor 0-100 Ppm CLE-1012-401
Specifications
Model Number :
4NH3-100
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 work days
Range :
0 to 100 ppm
Sensitivity :
0.135 ± 0.035 uA/ppm
Resolution :
0.5ppm
Long-term stability :
< 2% signal value/month
Operating temperature :
-20 ℃ to 40 ℃
Operating humidity :
15 to 90%RH (non-condensing)
Working pressure :
90 to 110 kPa
Description

4NH3-100 Zero bias ammonia sensor 0-100 ppm CLE-1012-401

Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.

Bias voltage 0 mV
Storage time 6 months (in special box)
Storage temperature 0℃ to 20 ℃
Service life ≥1 year in the air
Warranty period 12 months after delivery
