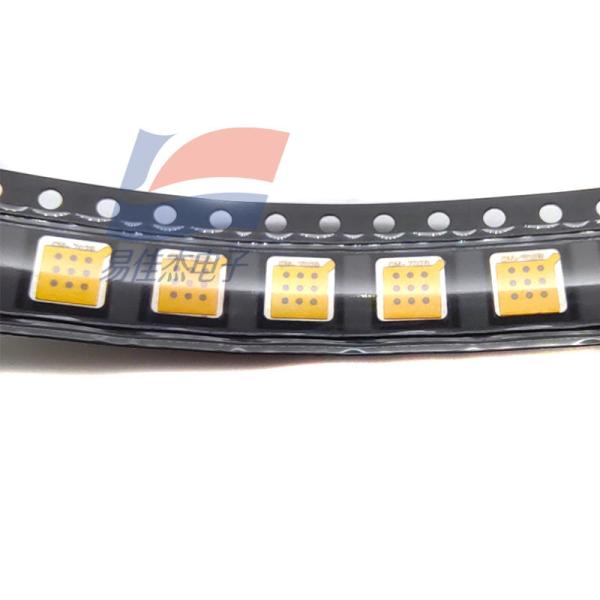

GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
Specifications
Model Number :
GM-602B
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Sensor Type :
MEMS
Standard Encapsulation :
Ceramic
Detection Gas :
H2S & Benzene etc
Detection Range :
0.5~50ppm (H2S)
Loop Voltage :
≤24V DC
Heater Voltage :
1.9V±0.1V AC or DC
Description

GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector

Product description:

MEMS H2S gas sensor is using MEMS micro-fabrication hot plate on a Si substrate base, gas-sensitive materials used in the clean air with low conductivity metal oxide semiconductor material. When the sensor exposed to gas atmosphere, the conductivity is changing as the detected gas concentration in the air. The higher the concentration of the gas, the higher the conductivity. Use simple circuit can convert the change of conductivity of the gas concentration corresponding to the output signal.

Character:

MEMS technology, Strong construction High sensitivity to H2S gases Small sizes and low power consumption Fast response and resume Simple drive circuit, Long lifespan

Application :

Portable and fixed type hydrogen sulfide monitor, and H2S detector

Heater consumption ≤40mW
sensitive materials resistance 1KΩ～30KΩ(in 50ppmH2S )
Sensitivity R0(in air)/Rs(in 50ppmH2S)≥3

GM-602B MEMS H2S Gas Sensor High Sensitivity To H2S Gases Small Sizes And Low Power Consumption Portable And Fixed Type Hydrogen Sulfide Monitor And H2S Detector
