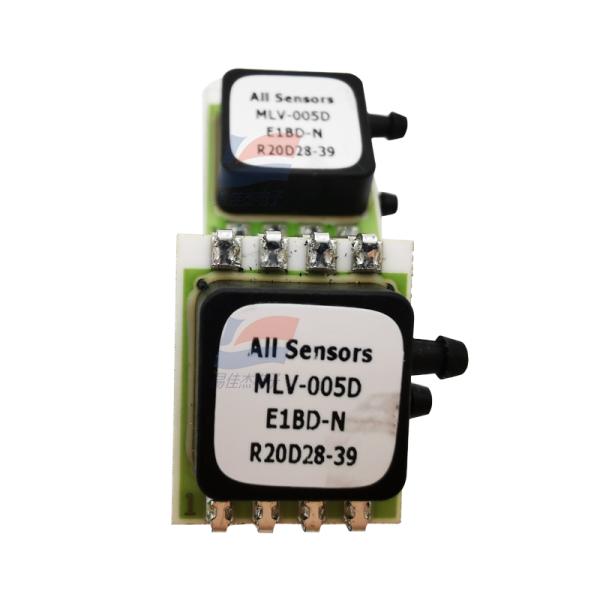

YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
Specifications
Brand Name :
All Sensors
Model Number :
MLV-005D-E1BD-N
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
3 days
Packaging Details :
Disk mounting
Accuracy :
0.25%
Output type :
Analog
Installation style :
Through Hole
Working power supply voltage :
5V
Description

Product Description:

MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor

Features:

MLV Series Compensated Sensor is based on All Sensors’ CoBeam2 TM Technology. The device provides a high output signal at a low operating voltage while maintaining comparable output levels to traditional equivalent compensated millivolt sensors operating at higher voltages. This lower supply voltage gives rise to improved warm-up shift while the CoBeam2 TM Technology itself reduces package stress susceptibility resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to conventional single die devices.These calibrated and compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. A protective parylene coating is optionally available for moisture/harsh media protection. The output is also ratiometric to the supply voltage and designed to operate at 5.0 volts DC.

Product category: Board interface pressure sensor

RoHS: Details

Type of pressure: Differential

Working pressure: 5 in H2O

Accuracy: 0.25%

Output type: Analog

Installation style: Through Hole

Interface type: -

Working power supply voltage: 5 V

Port type: Dual Radial Barbless

Resolution: -

Minimum operating temperature: -25 C

Operating temperature: + 85 C

Series: MLV

Trademark: All Sensors

Port size: 0.08 in

Product type: Pressure Sensors

10

Specifications:

Working pressur 5 in H2O
Pressure type Dual Radial Barbless
Pressure range 0 in H2O to 5 in H2O
Industrial -20 to 85°C

YJJ MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
