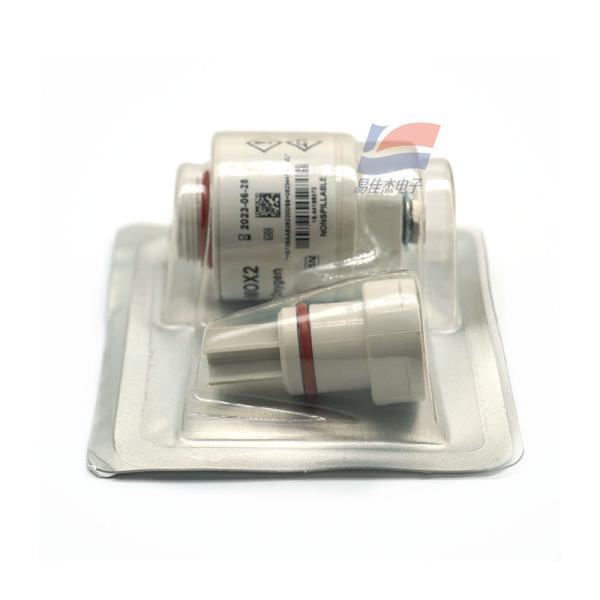

YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
YJJ MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor
Specifications
Brand Name :
CITY
Model Number :
MOX2 MOX-2
Place of Origin :
Britain
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
3 days
Packaging Details :
canning
Linearity :
Linear 0-100% O2
Zero signal in N2 at 20°C :
al in N2 at 20°
Operating Temp. Range :
-20°C to +50°C
Pressure Range :
0.5-2.0Bar
Description

Product Description:

MOX2 MOX-2 Measuring O2 Oxygen Concentration Electrochemical Gas Sensor

Features:

Intended Use

These sensors are designed to be used to monitor the partial pressure of oxygen in anaesthesia, critical care,

incubators and general Oxygen monitors.

Stabilisation time

Allow at least 15 minutes to stabilise in instrument before calibration.

Cleaning and Sterilisation

In case of contamination the sensor may be cleaned with distilled water and allowed to dry naturally. The sensor is

not suitable for sterilisation by steam or exposure to chemicals such as ethylene oxide or hydrogen peroxide

Calibration Interval

These sensors are designed to have minimal drift over their useful lifetime however for maximun accuracy they should

be calibrated in 100% Oxygen before use.

Cross-sensitivity

Test Gas Error (%O2)

50% He/50% O2 <1%

80% N2 O/20% O2 +1 to +1.5%

4% Halothane/28.8% O2 /67.2% N2O +1.5% to 2%

5% Sevoflurane/28.5% O2 / 66.5% N2O +1 to +1.5%

5% Enflurane/28.5% O2 /66.5% N2O +1.2 to + 1.8%

5% Isoflurane/28.5% O2 /66.5% N2O +1.2 to 1.8%

5% CO2 / 28.5% O2 /66.5% N2O <1%

Sensor Connections Suggested Mating Parts

MOX-1 M16 thread, 3-pin molex header

(MOLEX 22-29-2031)

MOLEX 22-01-2035 (3-way housing)

MOLEX 08-56-0110 (crimp terminals)

MOX-2 M16 thread, 0.141”/3.5mm mini

phone jack

SWITCHCRAFT 750 mini phone jack

MOX-3 M16 thread, UK data socket

AMP P/N 520257-2

MOX-4 M16 thread, UK data socket

AMP P/N 520257-2

Specifications:

Measurement range 0-1500mBar O2
Response Time (T90) <15 s (air to 100% O2)
Baseline Offset <200 μV
Linearity Linear 0% to 100% O2
