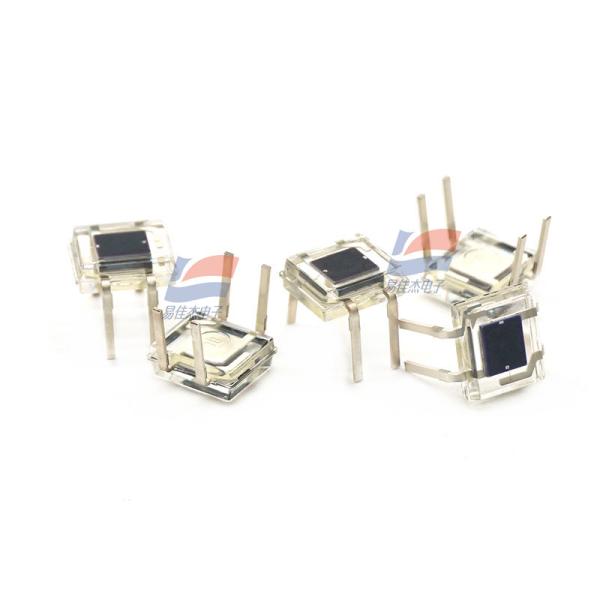

YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
YJJ S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band
Specifications
Brand Name :
HAMAMATSU
Model Number :
S6931-01
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
3 days
Packaging Details :
piping
Heat dissipation :
uncooled type
Reverse voltage (Max.) :
10V
Sensitivity wavelength range :
320 to 1000 nm
Maximum sensitivity wavelength (typical value) :
720 nm
Description

Product Description:

S6931-01 Silicon Photodiode In Transparent Plastic Package In Visible To near-Infrared Band

Features:

Silicon photodiode molded into a transparent plastic package

peculiarity

- Visible to near infrared band (suppressed infrared sensitivity type)

Detailed parameter

Receiving surface 2.4 × 2.8 mm

Encapsulation plastic

Package category --

Heat dissipation uncooled type

Reverse voltage (Max.) 10 V

Sensitivity wavelength range 320 to 1000 nm

Maximum sensitivity wavelength (typical value) 720 nm

Photosensitivity (typical value) 0.48 A/W

Dark current (Max.) 20 pA

Rise time (typical value) 0.5μs

Junction capacitance (typical value) 200 pF

Typical values of measurement conditions Ta=25°C, photosensitivity: λ = λp, dark current: VR = 1 V, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated

Spectral sensitivity characteristic

Specifications:

Photosensitivity (typical value) 0.48 A/W
Dark current (Max.) 20 pA
Rise time (typical value) 0.5μs
Junction capacitance (typical value) 200 pF
