Product Description:

Receiving surface 10 × 10 mm
Number of pixels 1
Encapsulated ceramics
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Sensitivity wavelength range 190 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Photosensitivity (typical value) 0.5A /W
Dark current (Max.) 200 pA
Rise time (typical value) 3 μs
Junction capacitance (typical) 1100 pF
Noise equivalent power (typical value) 1.8×10-14 W/Hz1/2

Features:

• Product Name: Infrared Photoelectric Sensor
• Reverse voltage (Max.): 5V
• Number of pixels: 1
• Junction capacitance (typical): 1100 PF
• Receiving surface: 10 × 10 Mm
• Photosensitivity (typical value): 0.5A /W

Technical Parameters:

Applications:

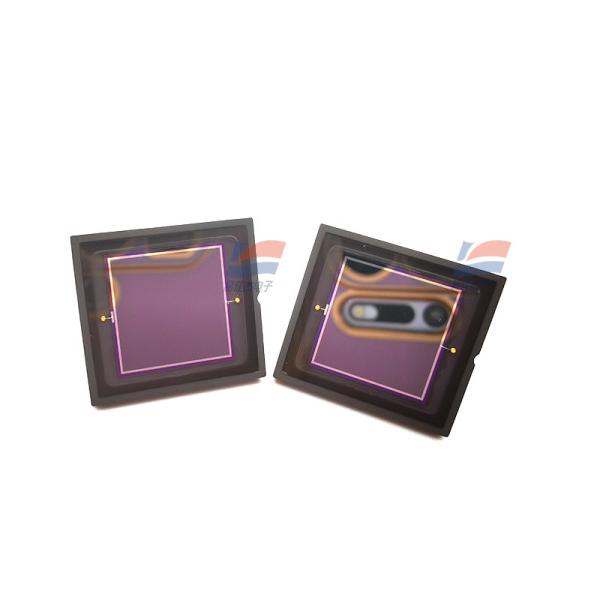

The Hamamastu Infrared Photoelectric Sensor, models S1337-1010BQ and S1337-1010BR, originating from Japan, is a versatile product suitable for various application occasions and scenarios due to its advanced features.

With a sensitivity wavelength range of 190 to 1100 Nm, the sensor is ideal for applications requiring precise detection within the infrared spectrum. Its uncooled type refrigeration makes it convenient for use in environments where temperature control is not a priority.

The maximum sensitivity wavelength of 960 Nm ensures accurate and reliable detection in specific ranges, making it well-suited for tasks that demand high sensitivity.

Equipped with a junction capacitance of 1100 PF and a rise time of 3 μs (typical value), this sensor offers fast and efficient response times, enhancing its performance in time-critical applications.

One of the key features of this sensor is its compatibility with the Infrared transmitter JSIR350-4-AL-R-D6, allowing for seamless integration into systems that require both an infrared transmitter and a receiver for enhanced functionality.

Common product application occasions and scenarios for the Hamamastu Infrared Photoelectric Sensor include industrial automation, robotics, security systems, medical devices, and scientific research where accurate detection within the infrared spectrum is essential.

Customization:

Product Customization Services for the Infrared Photoelectric Sensor:

Brand Name: Hamamatsu

Model Number: S1337-1010BQ S1337-1010BR

Place of Origin: Japan

Package: Ceramic

Reverse voltage (Max.): 5V

Refrigeration: Uncooled Type

Junction capacitance (typical): 1100 PF

Photosensitivity (typical value): 0.5A /W

Support and Services:

The Infrared Photoelectric Sensor product comes with comprehensive Product Technical Support and Services to ensure optimal functionality and performance. Our team of experts is available to assist with any technical inquiries, troubleshooting, and product-related questions. Additionally, we offer various services such as installation guidance, product training, and maintenance support to help you maximize the benefits of using our Infrared Photoelectric Sensor.

Packing and Shipping:

Product Packaging:

The Infrared Photoelectric Sensor is carefully packaged in a sturdy cardboard box to ensure safe delivery. The sensor is securely placed within protective cushioning material to prevent any damage during shipping.

Shipping Information:

This product will be shipped via a reputable courier service. Please allow 2-3 business days for processing and handling before the sensor is dispatched. Once shipped, you will receive a tracking number to monitor the delivery status of your package.
