Specifications
Model Number :
HCN/C-100
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Operation Principle :
3-Electrode Electrochemical
Nominal Range :
0 - 100 ppm
Maximum Overload :
200 ppm
Output Signal :
600 ± 150 nA/ppm
Resolution (Electronics dependent) :
< 0.05 ppm
T90 Response Time :
< 20 s
Typical Baseline Range (pure air, 20°C) :
-0.1 ppm to 0.3 ppm
Maximum Zero Shift (+20°C to +40°C) :
1 ppm
Repeatability :
< 2 % of signal
Description

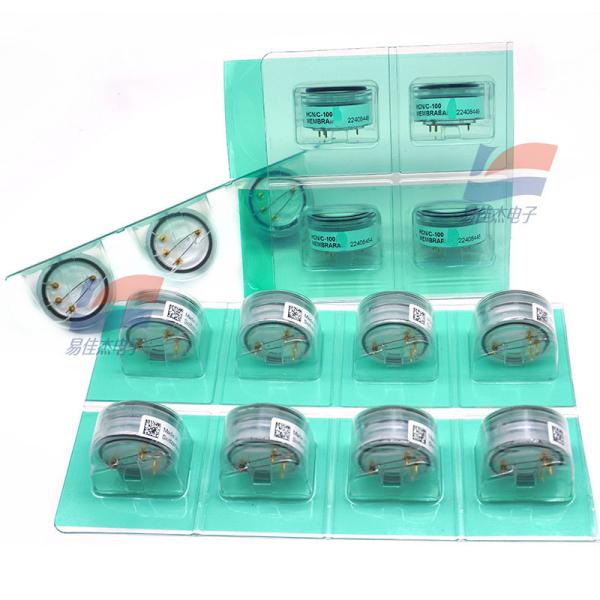

Hydrogen Cyanide Gas Sensor HCN/C-100

HCN Gas Sensor in Compact Housing

Applications:

• Discontinuous Measurement

• Safety and Environmental Control

Cross Sensitivity Data :

The table below does not claim to be complete. Interfering gases should not be used for calibration. Please contact Membrapor AG for further support regarding cross sensitivities.

Rec. Load Resistor 10 - 33 Ω
Bias (V_Sens-V_Ref) not recommended
Conformity to RoHS directive RoHS Compliance
Relative Humidity Range 15 % to 90 % RH non-condensing
Temperature Range -20 °C to 50 °C
Pressure Range Atmospheric ± 10%
Pressure Coefficient N.D.
Humidity Effect None
