Specifications
Model Number :
HF 3E 10 SE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Measuring Range :
0–10 ppm
Sensitivity Range :
300 nA/ppm ± 100 nA/ppm
Zero Current at 20°C :
<± 30 nA
Resolution at 20°C :
<0.1 ppm
Bias Potential :
0 mV
Linearity :
Linearity
Description

Hydrogen Fluoride

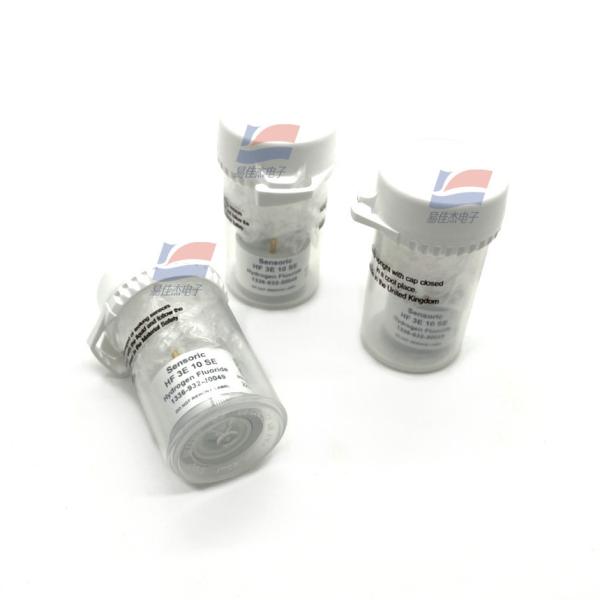

SensoriC HF 3E 10 SE

FEATURES:
Amperometric 3 electrode sensor cell
Very stable zero reading
Highly sensitive
Monitors for acid gases

TYPICAL APPLICATIONS:

TLV-monitoring, leakage detection
Portable & fixed point applications

PART NUMBER INFORMATION:

MINI 1336-932-30009
SENSORIC CLASSIC 1336-932-30069
CTL4 series adaptation 1336-932-30049
CTL 7 series adaptation 1336-932-30079

OUTPUT vs. TEMPERATURE:
Due to the nature of the gas the temperature dependence of the sensor as a function of the
environmental temperature conditions is strongly related to the experimental conditions such
as relative humidity.
SensoriC is currently revising this set of data via cross calibration with HCl.
Based on the current experience with this sensor the temperature dependence
a) on the zero reading is < 0.5 ppm
b) on the sensitivity is < 20% of the sensitivity at 20°C
within the specified temperature range.

Operation Conditions -20°C to +40°C
Humidity Range 15–90% r.H., non–condensing
Effect of Humidity abrupt change of r.H. might cause a zero reading transient
Sensor Life Expectancy > 18 months
Warranty 12 months
