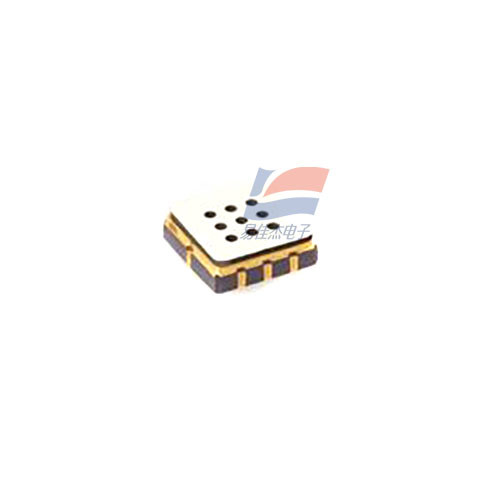

YJJ GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms
YJJ GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms
YJJ GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms
YJJ GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms
Specifications
Brand Name :
YJJ
Model Number :
GM-502B GM502B
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3 days
Packaging Details :
Disk mounting
Maximum heating power :
PH 50 mW
Loop voltage VS :
4.9-5.1V
Relative humidity range RH :
5-95%RH
Working temperature Ta :
-30-85 °C
Storage temperature range :
TS-40-120 °C
Storage humidity range RH :
5-95%RH
Description

Product Description:

GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms

Features:

MEMS VOC gas sensor is composed of a MEMS process SI-based micro-hot plate and a metal oxide semiconductor material with low conductivity in clean air. When the detected gas is present in the ambient air, the conductivity of the sensor changes. The higher the concentration of this gas, the higher the conductivity of the sensor. A simple circuit can be used to convert the change in conductivity into an output signal corresponding to the concentration of that gas.

Product advantage

GM-502B air quality VOC sensor adopts MEMS technology, strong structure and good shock resistance; It has the characteristics of small size, low power consumption, high sensitivity, quick response recovery, simple drive circuit, good stability and long life

Main application

GM-502B Air quality VOC sensor is suitable for indoor air quality monitoring, mobile phones, computers and other consumer products, air quality detection is also suitable for exhaled air physical detector, indoor smoke alarm and so on.

Specifications:

Sensor resistance R0-100 1500 KΩ
Detection concentration of gas (C2H5OH) Fs-1 500 ppm
Sensitivity S50-1.2 50
Heating power consumption tunable

YJJ GM-502B GM502B MEMS Air Quality VOC Sensor Is Used For Indoor Air Quality Monitoring Such As Smoke Alarms
