NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
Specifications
Model Number :
NO2/M-20 NO2/M-100 NO2/M-500
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Operation Principle :
3-Electrode Electrochemical
Nominal Range :
0 - 20 ppm
Maximum Overload :
40 ppm
Output Signal :
- 600 ± 150 nA/ppm
Resolution (Electronics dependent) :
< 0.1 ppm
T90 Response Time :
< 40 s
Typical Baseline Range (pure air, 20°C) :
-0.1 ppm to 0.2 ppm
Maximum Zero Shift (+20°C to +40°C) :
see Graph
Description

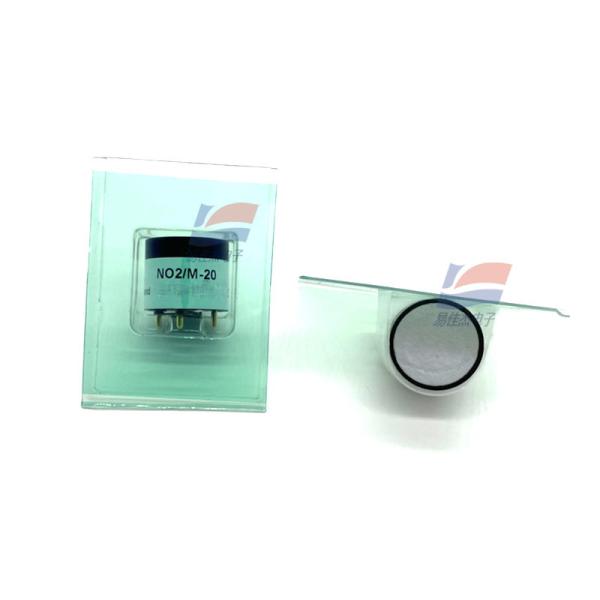

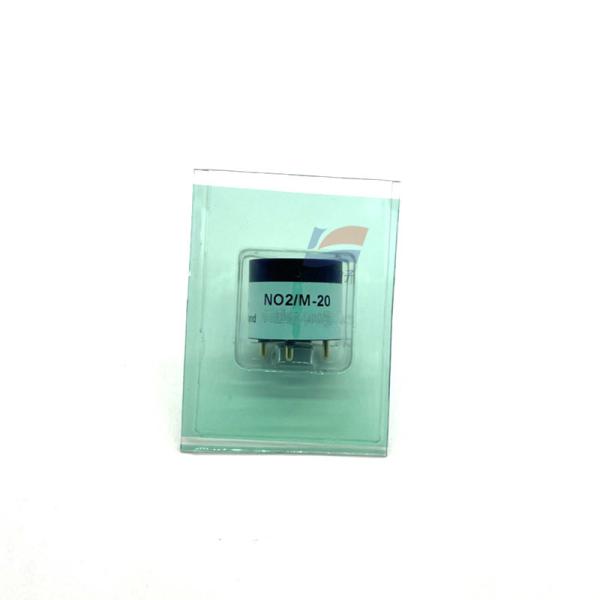

Nitrogen Dioxide Gas Sensor NO2/M-20

NO2 Gas Sensor in Miniature Housing

Applications :

• Continuous Air Quality Monitoring

• Safety and Environmental Control

• For Portable Gas Detectors

Relative Humidity Range 15 % to 90 % RH non-condensing
Temperature Range -40 °C to 50 °C
Pressure Range Atmospheric ± 10%
Pressure Coefficient N.D.
Humidity Effect None
Expected Operation Life 2 years in air
Expected Long Term Output Drift in air < 2 % signal loss per month
Storage Life 6 months in container

NO2/M-20 NO2/M-100 NO2/M-500 Nitrogen Dioxide Gas Sensor 3-Electrode Electrochemical Gas Sensor Continuous Air Quality Monitoring Safety And Environmental Control For Portable Gas Detectors
