3. Process Flow Brief Description

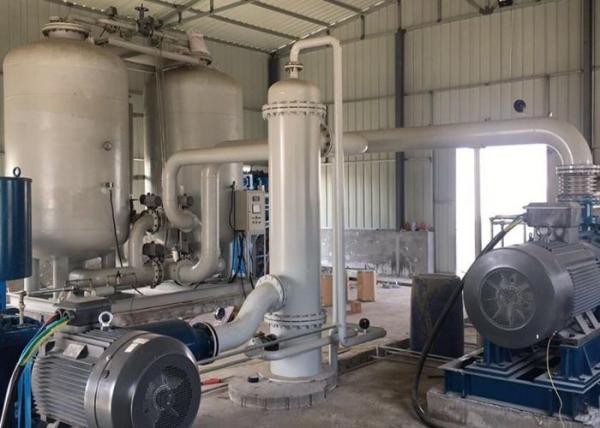

VPSA oxygen generating equipment is mainly composed of a blower, vacuum pump, switch valve, adsorber and the oxygen tank.The air is pressurized by a Roots blower into an adsorber loaded with oxygen molecular sieves. Moisture, carbon dioxide and nitrogen are adsorbed to produce oxygen.

When adsorbed to a certain extent, vacuum pumps are used to vacuum, and the adsorbed moisture, carbon dioxide, nitrogen and a small amount of other gases are respectively pumped out to the atmosphere, and the adsorbents are regenerated. The above process steps are implemented by PLC and switch valves system to realize automatic control.

4. Technical Features

• Low investment and energy consumption as newly advanced molecular sieve of oxygen separation from air adopted, with unit power consumption for producing oxygen: 0.26-0.38kwh/Nm3, consumption of circulating water: 0.002t/Nm3 and over 67% of oxygen yield.
• Well adaptability with adjustable oxygen purity of 25 ~ 95%, and adjustable production load of 25 ~ 110%.
• Short in process, high automation and easy to operate.

5. Chenrui oxygen plant advantages

Among all Chinese suppliers, why customers choose Hangzhou Chenrui, not others?

1) More than ten years development, advanced technology;

2) Purity, flow rate, outlet pressure NO DROP after long time operation;

3) Skid installation, touch screen operation. NO NEED for Chenrui engineer at site;

4) CECA OX8 ZMS

6. FAQ:

Q: Are you trading company or factory?

A: We are Chenrui skid-mounted Oxygen Generator factory, founded in 2010.Welcome you to visit our company at anytime!

Q: What is the terms of payment?

A: T/T, L/C etc.

Q: How long is your delivery time?

A: Generally it is 10-50 working days depending on your order.

Q: How to get a prompt quotation?

A: When you send us inquiry, please kindly tell us the below technical information.

1) O2 Flow rate: ____Nm3/h

2) O2 Purity: ____%

3) O2 Discharge pressure: ____Bar

4) Voltages and Frequency: _____V/PH/HZ

5) Application or use for which industry.

Q: What’s the order process?

A: 1) Inquiry---provide us all clear requirements.

2) Quotation---official quotation form with all clear specifications.

3) Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.

4) Contract confirmation---provide correct contract details.

5) Payment terms--- T/T 30% in advanced, balanced before shipment.

6) Production---mass production g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.

7) Installation and commissioning.
