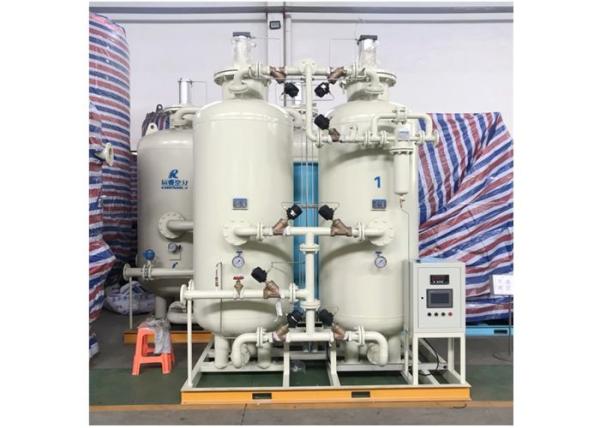

High Purity Nitrogen Generator Nitrogen Plant / N2 Generator Skid Mounted

Applications
- Food packaging (cheese, salami, coffee, dried fruit, herbs, fresh pasta, ready meals, sandwiches,etc. ..)
- Bottling wine, oil, water, vinegar
- Fruit and vegetable storage and packing material
- Industry
- Medical
- Chemistry

PSA Nitrogen Generator System is used worldwide.

Principle of Operation
The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.

Process Flow Brief Description

Main Characteristic
1. Provide maximum business value
2. Molecular sieve filling and compacting, adopt the professional way to complete in a professional context, higher density, higher efficiency
3. Design optimization, process and structure of the system, to play the greatest potential, higher reliability
4. Special valve by one million times, frequent switching fault free,and stable operation of security system
5. Nitrogen can automatically record, easy to locate any work time ,work state
6. System design more reasonable, more secure, more reliable.
7. Automatic operation, the system, the whole process can be achieved unattended.

FAQ
1. Are you manufacturer or Trade Company?
We are the manufacturer of nitrogen Generator, founded in 2005
2. What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3. What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) N2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) N2 purity: _____%
3) N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
