Specifications
Brand Name :
Chenrui
Model Number :
CBO
Certification :
ISO9001;ISO9001:2008
Place of Origin :
hangzhou
MOQ :
1 SET
Price :
USD$3,000.00--$200,000.00/SET
Payment Terms :
T/T, L/C
Supply Ability :
50 Sets per quarter
Delivery Time :
Within 45days after recieved advanced payment
Packaging Details :
Export Stardard Package
Warranty :
1 YEAR
Production rate :
100%
After-sales service provided :
Engineers available to service machinery overseas, Field maintenance and repair service, Online support, Video technical support, Field installation
Weight :
Actual Weight), upon equipment model
Application :
General Industrial Fields, Medical oxygen generation, Metallurgical combustion, sewage treatment, Medical/hospital oxygen generator
Product name :
PSA Oxygen Generator
Dew point :
≤-40°C
Purity :
93+/-3%
Description

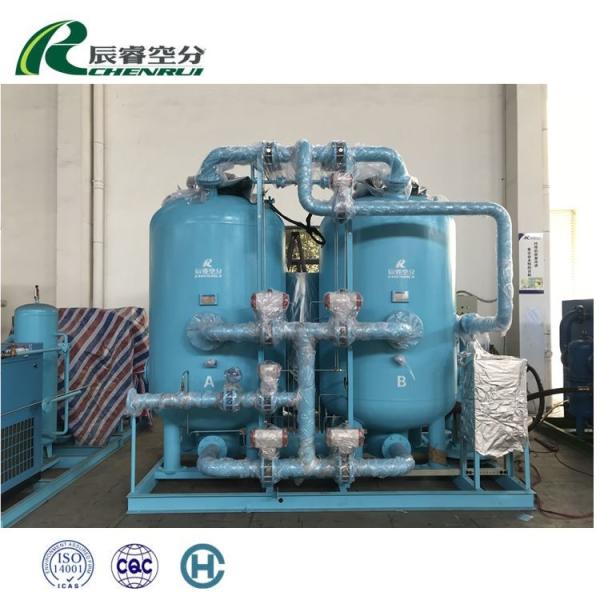

PSA Medical Oxygen Generating System , Oxygen Gas Filling Station

1. Product Name: Oxygen Gas Making&Cylinder Refilling System

oxygen making and cylinder refilling system can use PSA oxygen generator to produce oxygen and refill oxygen cylinders on site. PSA oxygen generator produces high purity oxygen gas directly from compressed air, after increase pressure to 150 bar by oxygen booster, can make oxygen gas and refill into cylinders continuously.

The Whole Oxygen Generation System Includes :

Air Compressor

Air Receiver Tank

Air Dryer & Precision Filters

Oxygen Generator (Includes control system, adsorption towers, buffer tanks, etc)

Oxygen Receiver Tank

Oxygen Booster/Compressor

Cylinder Manifold System

Oxygen Cylinders

2. Equipment Installation Condition

oxygen capacity 3-400Nm3/h
oxygen purity 93%+-3%
output pressure 0.1-0.4MPa(1-4Bar) adjustable / 15MPa filling pressure offered

3. Oxygen Generator Specification

Specification output (Nm³/h) Effective gas consumption (Nm³/h) air cleaning system
CBO-5 5 0.95 KJ-1
CBO-10 10 2.1 KJ-2
CBO-20 20 4.0 KJ-6
CBO-40 40 8.2 KJ-10
CBO-60 60 12.3 KJ-12
CBO-80 80 16.3 KJ-20
CBO-100 100 20.8 KJ-20
CBO-150 150 30.7 KJ-30
CBO-200 200 41 KJ-40

4. Process Flow Brief Description

Medical Oxygen Generating System , PSA Oxygen Gas Filling Station

5. Technical Features

1). Full Automation

All systems are designed for un-attended operation and automatic Nitrogen demand adjustment.

2). Lower Space Requirement

The design and Instrument makes the plant size very compact,assembly on skids,prefabricated from factory.

3). Fast Start-up

Start-up time is only 5 minutes to get desired Nitrogen purity.So these units can be switched ON&OFF as per Nitrogen demand changes.

4). High Reliabiity

Very reliable for continuous and steady operation with constant Nitrogen purity.Plant availability time is better than 99% always.

5). Molecular Sieves life

Expected Molecular sieves life is around 15-years i.e. whole life time of nitrogen plant.So no replacement costs.

6). Adjustable

By altering flow,you can deliver nitrogen with precisely the right purity.
