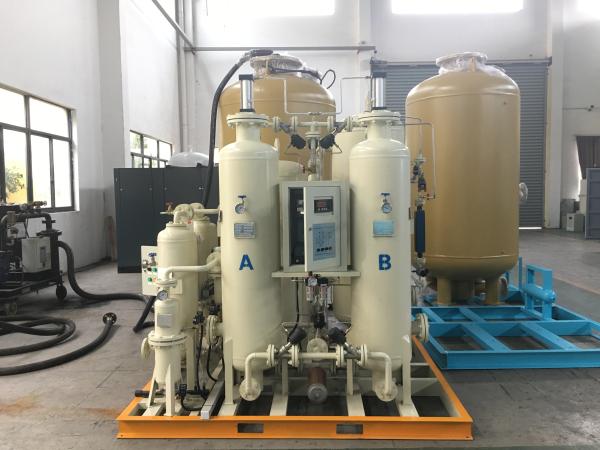

Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity
Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity
Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity
Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity
Specifications
Brand Name :
Chenrui
Model Number :
CBO
Certification :
ISO9001;ISO9001:2008
Place of Origin :
hangzhou
MOQ :
1 SET
Price :
USD$3,000.00--$200,000.00/SET
Payment Terms :
T/T, L/C
Supply Ability :
50 Sets per quarter
Delivery Time :
Within 45days after recieved advanced payment
Packaging Details :
Export Stardard Package
Production rate :
100%
After-sales service provided :
Engineers available to service machinery overseas
Application :
Medical/hospital oxygen generator
Capacity :
3-400Nm3/h
Color :
Customers'requirement
Product name :
PSA Oxygen Generator
Material :
Carbon steel
Filling pressure :
150/200bar
Description

Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity

1. Equipment Installation Condition

oxygen capacity 3-400Nm3/h
oxygen purity 93%+-3%
output pressure 0.1-0.4MPa(1-4Bar) adjustable / 15MPa filling pressure offered

2. Product Description

The compressed air passes through the air purification system to remove the impurities, such as oil, water and dust, and into the adsorption tower with zeolite molecular sieve. The nitrogen, carbon dioxide and water vapor in the air are adsorbed in large quantities by molecular sieves, and oxygen and nitrogen are separated because of the high diffusion rate of oxygen.

When the nitrogen and other impurities in the adsorption tower reach saturation, the pressure is reduced and the zeolite molecular sieve is regenerated and reused.


The two adsorption towers are operated under the control of PLC and continuously produce high quality oxygen.

3. Process Flow Brief Description

Small Skid - Mounted Oxygen Gas Plant PSA Oxygen Generator 90-95% Purity

4. Technical characteristics

1) The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity. 2) Perfect process design and best use effect.

3) Modular design is designed to save land area.

4) The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.

5) Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow.

6) Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.

7) The key components of famous brands are the effective guarantee of equipment quality.

8) The automatic emptying device of national patent technology guarantees the nitrogen quality of finished products.

9) It has many functions of fault diagnosis, alarm and automatic processing.

10) Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.
