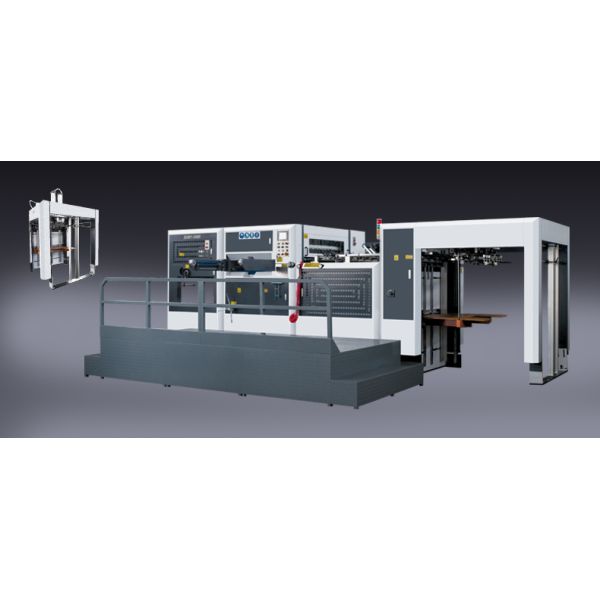

1080×780mm Auto Die Cutter Die Cutting Creasing Machine 300T
1080×780mm Auto Die Cutter Die Cutting Creasing Machine 300T
Specifications
Model Number :
XLMY-1020C
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-25 days
Packaging Details :
Export Packing
Max. Paper Size :
1080×780mm
Min. Paper Size :
400×370mm
Max. Cutting Size :
1070×770mm
Max. Die-cutting Speed :
6000s/h（Stripping） 7000s/h（Die-cutting ）
Die-cutting Precision :
±0.1mm
Max. Pressure :
300T
Description

High Output Automatic Die-cutting Creasing Machine Auto Die Cutter

1080×780mm Auto Die Cutter Die Cutting Creasing Machine 300T

Main Features
1.XLMY-1020C/1080/1080Q Automatic Die-cutting & Creasing machine is a key equipment to die-cutting, creasing, and cold embossing paper cassette, box, and label, etc.
2.High precision indexing mechanism, pneumatic-lock plate, air clutch, unique drive gear, locating system and high speed and even feeding ensure smooth feeding, accurate location, even delivery.
3.The bearings and chains of the main drive are imported ones.
4.The key parts, control system, and fastener are all imported. This machine is of stable pressure, accurate location, high precision, safety, and reliability in operation.
5.Electricity unit adopts computer control man-machine interface, electricity & light detection and light&sound alarm, which make operation safe, this ensures fully automatic. The interface shows working state and trouble elimination.
6.Programmable controller is incorporated to realize fully automatic feeding, die-cutting, delivery, malfunction display and diagnose, etc.
7.The main motor is controlled by a frequency converter, which can do step-less speed change.
8.1080 Can be equipped with Manual-Automatic type,1080 Automatic Die-cutting & Creasing Machine with Stripping station.

XLMY-1080Q Main Specification

Model XLMY-1080Q(模切清废机)
Max. Paper Size 1080×780mm
Min. Paper Size 400×370mm
Max. Cutting Size 1070×770mm
Max. Die-cutting Speed 6000s/h(Stripping)
7000s/h(Die-cutting )
Die-cutting Precision ±0.1mm
Max. Pressure 300T
Max. Feeding Pile 1450mm
Max. Delivery Pile 1350mm
Sheet Thickness cardboard 0.2-1.5mm
corrugated paper ≤4
Total Power 22KW
Net Weight 16.8T
Overall Dimensions 6000×4000×2150mm

XLMY-1080 Main Specification

Model XLMY-1080
Max. Paper Size 1080×780mm
Min. Paper Size 400×370mm
Max. Cutting Size 1070×770mm
Max. Die-cutting Speed 7000s/h
Die-cutting Precision ±0.1mm
Max. Pressure 300T
Max. Feeding Pile 1450mm
Max. Delivery Pile 1350mm
Sheet Thickness cardboard 0.2-1.5mm
corrugated paper ≤4
Total Power 17KW
Net Weight 15.8T
Overall Dimensions 4800×4000×2150mm

XLMY-1020C Main Specification

Model XLMY-1020C
Max. Paper Size 1020×720mm
Min. Paper Size 400×360mm
Max. Cutting Size 1010×710mm
Max. Die-cutting Speed 6000s/h
Die-cutting Precision ±0.1mm
Max. Pressure 250T
Max. Feeding Pile 1350mm
Max. Delivery Pile 1250mm
Sheet Thickness cardboard 0.2-1.5mm
corrugated paper ≤4
Total Power 17KW
Net Weight 13.8T
Overall Dimensions 4500×4000×2100mm
