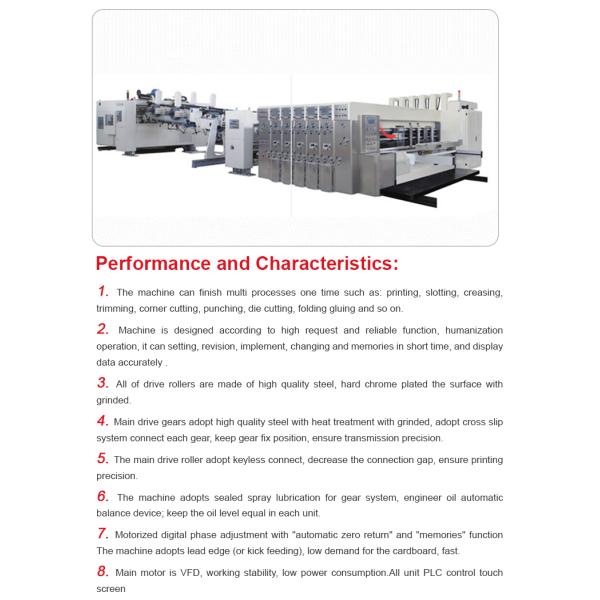

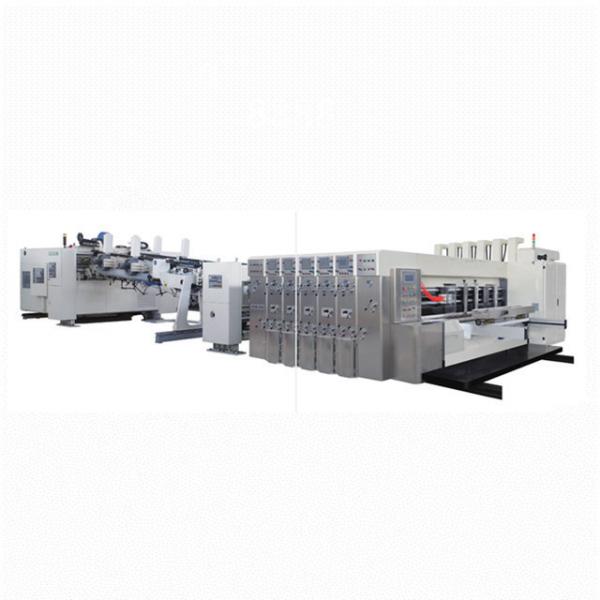

Automatic high speed printing slotting die cutting folding gluing carton production line

Main technology Parameters

Equipment process

Printing →Die Cutting/Slotting Unit→Gluing→Folding→Preloading→Count&Stacking→Packaging

Gluing machine function description:

² Gluing part:

² The horizontal movement of rubber roller is adjusted by electric screw rod. The size is controlled by man-machine interface

² The gluing part adopts nonstop or gluing system to prevent the glue solidification when the machine starts at the end of a short time,the gap of the upper rubber wheel can be adjusted easily, which can adapt to the gluing of 3-8mm thick paper, and the gluing amount can be adjusted easily.

² The belt speed of upper and lower beams and the speed of slotting machine can be adjusted separately, and the gluing folding belt and conveyor belt are very close to the speed of the slotting machine, avoiding the problem of paper grabbing or blocking between the paste box line and the slotting machine.

² The speed of lower belt is separately adjusted by the servo motor, that is, when the upper and lower belt speed is different, it can be adjusted to the same, and micro-adjust for rectify correction.

² Adopt belt and rubber covered roller to fold, flexible to adjust the angle of folding and easy to operate.

² Preloading degree, using up and down sticks adjustable gap preloading can press 3-8mm paper thick folding box, with man-machine interface for easy adjustment.

Stacking and counting part:

² Electric stacking and aligning of the cardboard, attain totally work automatically.

² Adopt electric eye (electric eye signal) to count carton quantity, easy to setting and operate ,structuresafety and dependable.

² electric eye count the stacking quantity, accurate output
