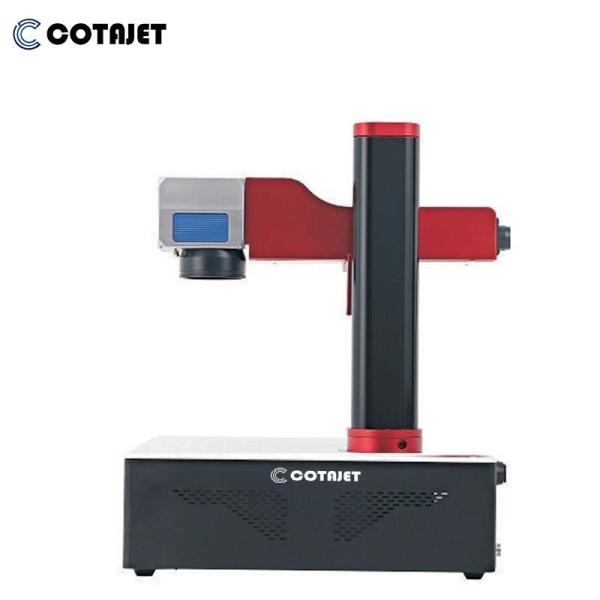

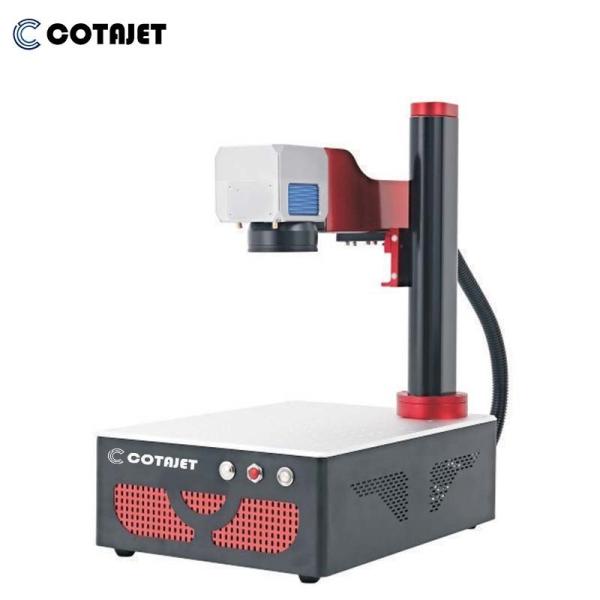

COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine
Specifications
Place of Origin :
Wuhan,China
Brand Name :
COTAJET
Certification :
CE,Rohs,SGS
Delivery Time :
5-7 work day
Payment Terms :
TT,L/C,Western union
Material :
fiber laser engraving machine
Product ID :
CL700A
Product Tags :
Fiber Laser Marking Machine
Laser Life :
＞100,000 hours
Power Supply :
90V~240V 50/60HZ
Power consumption :
300-500W
Laser Power :
20W/30W/50W/100W
Marking Range :
110X110mm(Standard) Optional:150X150mm,300X300mm
Marking Content :
Number、English、Alphabet 、Picture、QRCODE、Barcode
Description

Fiber Laser Marking Machine For expiry date Coding Aluminum Stainless Steel

The Cotajet is a unique fiber laser marking system designed for quick integration in all types of production lines. Offering unmatched speed and reliability, it is ideal for metal marking applications. It can create permanent marks including data matrix codes, QR codes, serial numbers, alphanumeric characters and logos.

project

Parametertable

20W

30W

characteristic

Machine material

All aluminum sandblasting oxidation

Laser

The service life is more than 100000 hours

Laser wavelength

1064nm

output power

≥23W

≥34W

Marking speed

≤12000mm/s

controller

10.2 inch touch controller

Cooling system

Air cooling

parameter

Focus lens

165mm

Minimum linewidth

0.012mm

Repetitionaccuracy

0.003mm

Marking range

110mm*110mm(optinal)

Positioning mode

Blue light indication

Number of rows

Any line within the marking range

Production line speed

0~130m/min (depending on the material)

Software

Multilingual

English, Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user management authority

operating system

Linuxsystem

Inkjet mode

Static, analog, encoder

Reserved signal

Start, print status, finish, fault

data protection

With power failure data protection energy

monitor

Provide overspeed alarm function

De crossing

Automatic removal of intersections

Coding software

Single and double machine code sending

Support type

typeface

Chinese and English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR

Servicing parameters

Power Supply

220V/50HZ

Power consumption

400W

Net weight of machine

28kg

Overall dimension

530mmX140mmX165mm

environment

requirement

External temperature0℃－45℃;humidity≤95
