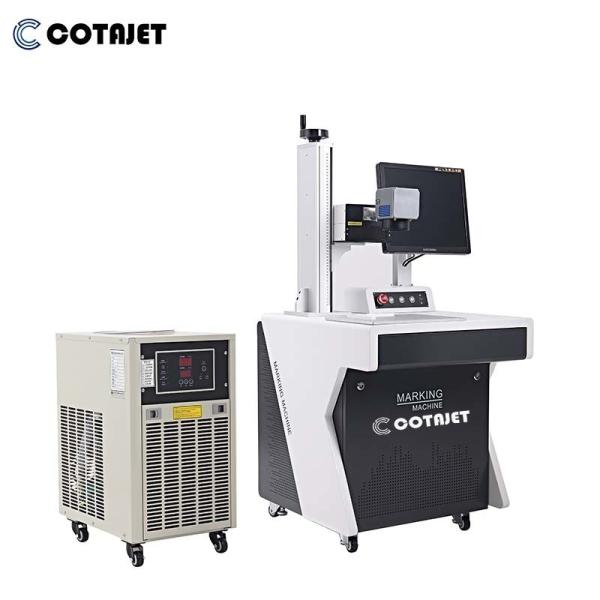

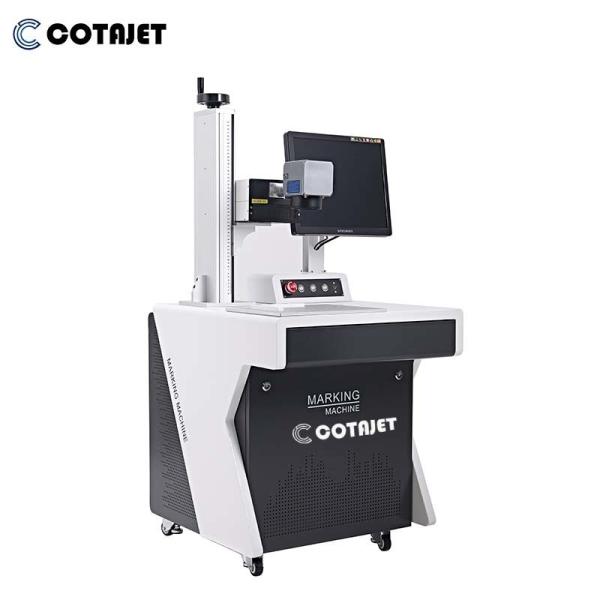

UV Laser Coding Machine 3W 5W 10W Laser Printer For Printing On Wood

Specifications

Place of Origin :

Wuhan,China

Brand Name :

COTAJET

Certification :

CE,Rohs,SGS

Delivery Time :

5-7 work day

Payment Terms :

TT,L/C,Western union

Model Number :

CL300A

Material :

UV laser

Product ID :

CL300A

Power :

3W/5W/10W

Laser life :

>20000-30000 Working Hours

Marking speed :

≤12000mm/s

controller :

10.2 inch touch controller

Marking range :

110X110mm(Standard) Optional:200X100mm,500X500mm

Power Supply :

220V/50HZ

Power consumption :

400W

Description

Laser Coding Machine Laser Printer For Printing On Wood

UV lasers are different to other marking lasers such as CO2 and fibre. UV uses high-energy photons to break chemical bonds in materials, a process known as 'cold processing’, which minimises thermal damage to surrounding areas.

By minimising thermal stress, UV laser marking ensures substrate integrity and reduces the risk of damage, making it an ideal choice for marking sensitive materials where traditional CO2 and fibre lasers may cause undesirable effects.

Main Features

UV lasers are an ideal coding solution for a diverse range of materials including delicate mono-recyclable films, glass and difficult to mark rigid plastics such as HDPE, LDPE and PP, whilst maintaining the integrity of the product.

Technical Parameters

project	Parametertable	UV-3W	UV-5W	UV-10W
characteristic	Machine material	All aluminum sandblasting oxidation
	Laser	The service life is more than 20000-30000 hours
	Laser wavelength	355nm
	output power	≥4.2W	≥6.5W	≥12W
	Marking speed	≤12000mm/s
	controller	10.2 inch touch controller
	Cooling system	Water cooling (with chiller)
parameter	Focus lens	210mm
	Minimum linewidth	0.01mm
	Repetitionaccuracy	0.001mm
	Marking range	110mm*110mm(optinal)
	Positioning mode	Blue light indication
	Number of rows	Any line within the marking range
	Production line speed	0~130m/min (depending on the material)
Software	Multilingual	English, Spanish, German, Chinese, Russian, Arabic, etc
	jurisdiction	Multi user management authority
	operating system	Linuxsystem
	Inkjet mode	Static, analog, encoder
	Reserved signal	Start, print status, finish, fault
	data protection	With power failure data protection energy
	monitor	Provide overspeed alarm function
	De crossing	Automatic removal of intersections
	Coding software	Single and double machine code sending
Support type	typeface	Chinese and English, numbers, traditional, etc
	file format	BMP/DXF/HPGL/JPEG/PLT
	bar code	CODE39,CODE128,CODE126,QR
Servicing parameters	Power Supply	220V/50HZ
	Power consumption	800W
	Net weight of machine	40kg
	Overall dimension	640mmX160mmX206mm
environment	requirement	External temperature0℃－45℃;humidity≤95
